High accuracy RTK GPS GNSS receiver Differential GPS base rover topograhic surveying instrument RTK GPS

FOB Reference Price:Get Latest Price
$6,000.00 - $7,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
v90-20190920J005
Lead Time:
Quantity(Pieces) 1 - 1 2 - 3 >3
Est. Time(days) 3 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
china
Brand Name:
hi-target
Working range:
15-20km optimal
Horizontal:
2.5mm+0.5ppm RMS
Vertical:
5mm+0.5ppm RMS
Weight:
950g
Product name:
High-Precision Hi-Target Rugged Design V90 Android GPS RTK
Accuracy:
0.1
Dimensions:
153mm*83mm
Channel:
220 Channels
Frequency:
450-470MHZ
Power:
15W
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
High accuracy RTK GPS GNSS receiver Differential GPS base rover topograhic surveying instrument RTK GPS
1 set packed in 3 cartons: 45*25*40cm (7kg)
45*25*40cm (7kg)
145*17*14cm(5kg)
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 3 >3
Est. Time(days) 3 7 To be negotiated
Video Description

High accuracy RTK GPS GNSS receiver Differential GPS base rover topograhic surveying instrument RTK GPS

Product Description

 With a hi-tech, fully integrated design, the conveniently sized V90Plus is one of the most flexible choices for any measuring task.Built-in Linux3.2.0 operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration,NFC and voice DIY, V90Plus GNSS system provides surveyor industry-leading GNSS solutions.



Key Features :



 • Smart Application

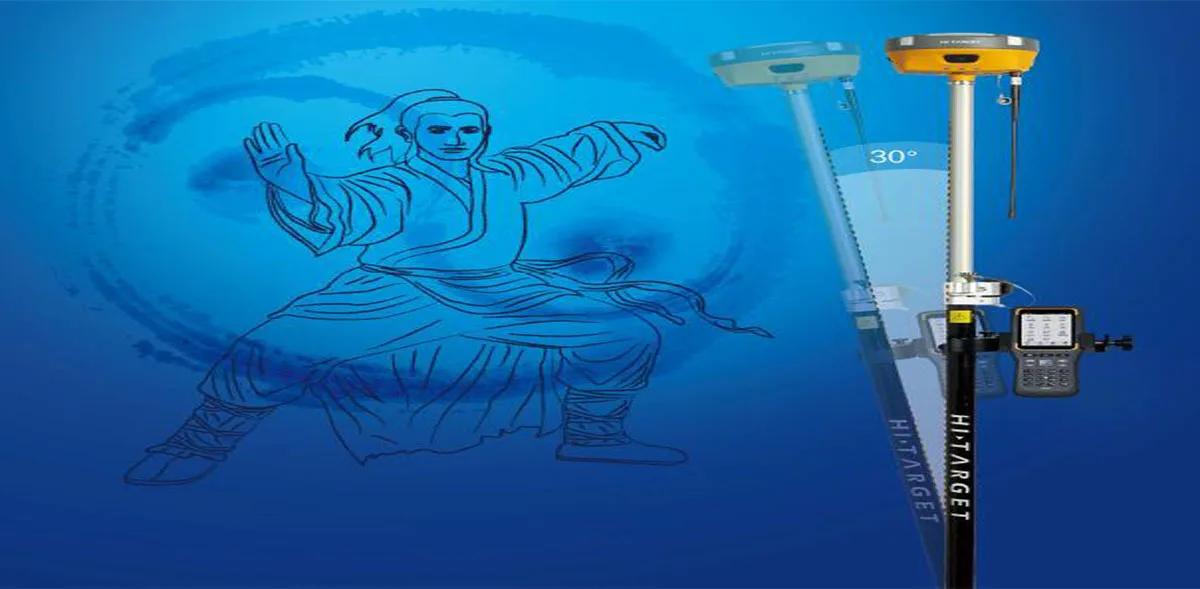

1.Offers tilt survey with a maximum tilt angle of 30 degrees.

2.Supports electronic bubble calibration

3.Intelligent voice assistance guides field operations. Voice can be DIY.

4.Standard Rinex data and HI-TARGET raw data recorded simultaneously.






• Multi-constellation Tracking

1.220 tracking channels

2.NGS approved full-band GNSS antenna

3.Supports GPS, GLONASS, GALILEO, BDS, SBAS

4.Supports a wide range of satellite signals

5.Alarge rceiving a rea designed for multipath mitigation

6.Air dielectric is light and stable

3 Optional Transceiver UHF Radio

1. The transceiver UHF radio enables switchable working modes between base and rover

2.Three types of internal UHF radio provide different frequencies based on users requirements.The SATEL internal UHF radio is compatible with other radios



4 Multi-network Connection

1. Supports GPRS,GSM and WCDMA

2. Supports WIFI



5 Powerful Battery

1.Powered by high-capacity (5000mAh)Li-ion battery to ensure full day operation



6 Rugged Design

1. IP67 dustproof and waterproof

2. Able to survive 3-meter natural fall onto concrete





iHand30

Professional Field Controller

The iHand30 is a rugged controller that is designed for data collection and GNSS device control.

Based on the Android operating system, it is compatible with Hi-Target professional software and third-party Android software.

Combining the physical keyboard with a touchscreen, it can boost efficient fieldwork and provide reliable solutions for users.









product show


 11.jpgV90 (7).jpgv90 (1).pngv90 (4).png








V90 PERFORMANCE SPECIFICATIONS

Statellite Signals Tracked Simultaneously

Channel

220 Channels

GPS

Simultaneous L1C/A, L2C, L2E, L5

GLONASS

Simultaneous L1C/A, L1P, L2C/A, (GLONASS M only), L2P

SBAS

Simultaneous L1C/A, L5

Galileo

Simultaneous L1 BOC, E5A, E5B, E5AltBOC1

BDS

B1, B2

QZSS

L1C/A,  L1 SAIF, L2C, L5

POSITIONING PERFORMANCE2

Horizontal

2.5mm+0.5ppm RMS

Vertical

5mm+0.5ppm RMS

Post Processing Kinematic (PPK / Stop & Go ) GNSS Surveying

Horizontal

1mm+1ppm RMS

Vertical

2.5mm+1ppm RMS

Initialization time

Typically 10 minutes for base while 5 minutes for  rover

Initialization reliability

typically > 99.9%

Code Differential GNSS Positionnig

Horizontal

25cm+1ppm RMS

Vertical

50cm+1ppm RMS

SBAS

0.50m Horizontal, 0.85m Vertical

COMMUNICATION

Network Communication

Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM

Wifi frequency is 2.4G, supports 802.11b/g/n protocol

Network RTK (via CORS) range20-50km

HI-TARGET Internal UHF Radio(Standard)



Frequency

450~470MHz with 116 channels

Transmitting power

1W, 2W, 5W adjustable

Transmitting speed

9.6Kbps, 19.2Kbps

Working range

5km typical, 8~10kmoptimal

HI-TARGET External UHF Radio(Standard)

Frequency

460MHZ with 116 channels

Transmitting power

5W,10W,20W,30W adjustable

Transmitting speed

Up to 19.2Kbps

Working range

8~10km typical,15~20km optimal

HARDWARE

Physical

Dimensions(W×H)

153mm×83mm(6.02inch×3.27inch)

Weight

950g(2.09(b)without internal battery

Operating temperature

—40℃ to+65℃(—40℉ to+149℉)

Storage temperature

—55℃ to+85℃(—67℉ to+185℉)

Humidity

100%,considering

Water/dustproof

IP67 dustproof,protected from temporary immersion to depth of 1m(3.28ft)

Shock and vibration

Designed to survive a 3m(9.84ft) natural fall onto concrete

Electrical

Power 6V to 28V DC external power input

Power consumption≤3.5W

Automatic switching between internal power and external power

Rechargeable,removable 7.4V,5000mAh Lithium-ion battery in internal battery compartment

Internal Battery Life

Static more than 10 hours

RTK rover (UHF/GPRS/3G)6—10 hours

RTK base more than 6 hours

I/O Interface

Bluetooth, NFC

×1

standard USB2.0port

×1



TNC antenna connector

×1

RS232 serial port

×1

DC power input (5—pin)

×1

MicroSD card port

×1



Data storage

16GB internal storage+Internal Micro SD Card memory (Support up to 32GB extension)



Record GNS and Rinex format simultaneously
