Sunway ATS320R total station , Accuracy 1mm (instrument height: 1.5m)

FOB Reference Price:Get Latest Price
$1,500.00 - $1,800.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Sunway
Model Number:
ATS320R
name:
Sunway total station
Model:
ATS-320R
Angle measuring method:
Absolute encoder
Operating system:
RTS
Ranging with single prism:
>7500m
Voltage/Capacity:
7.4V 3000mAh
Reticle:
illuminated
Weight including battery and tribrach:
5.5kg
Dust &Water proof(IEC60529):
IP54
Battery Type:
High-energy lithium battery
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
packaging Details: Sunway ATS320R total station
Size: 35cm x 45cm x 55cm
Weight:13kg
Port
Shanghai
Lead Time :
3-5 working days after payment confirmed
Product Description

Sunway ATS320R total station , Accuracy 1mm (instrument height: 1.5m)
Specification :

Serial

General total station

Angle measurement (Hz, V)

Theory used

Absolute encoder

Minimum reading

1″

Precision

2″

Telescope

Magnification

30x

Field of view

1°30′

shortest target distance

1.5m

Reticle

illuminated

Compensator

System

Integrated liquid Dual-axis compensator

Working range

±3′

Setting Accuracy

1″

Distance measurement (IR)

Ranging with singleprism under fine/middling pressure

2000m/2500m

Ranging with reflector

Nomal:350m
Long:800m

Precision (precise, coarse
measurement, tracking)

2mm±2ppm

Measuring time (single/
repeated/tracking)

2.4s/ 1s/ 0.6s

Distance measuring with Non-prism

Ranging with white target plate

350m (for shortdistance with non-prism 1measurement)

Ranging with single prism

>7500m

recision (short distance/tracking/prism)

3mm±2ppm

Time for a measurement
(short distance/tracking/prism )

1.5 s

Communication

Internal data storage

20000 points

Port

Standard RS232 serial port

Data format

ASCII

Operation

Operating system

RTS

Display

Graphics: 192x96 pixel; Characters:
6 lines x 25 characters; LCD

Keyboard(Optional 2nd keyboard)

Double-sided numeric keyboard

Laser Plumb

Type

Laser point, brightness adjustable in steps

Accuracy

1mm (instrument height: 1.5m)

Environment conditions

Temperature range (operation)

-20℃~+50℃

Temperature range (storage)

-40℃~+70℃

Water proof & dust proof (according to standard IEC60529)

IP54

Weight including battery and tribrach

5.5kg

Battery supply

Type

High-energy lithium battery

Voltage / capacity

7.4 V; 3000 mAh

Working duration

16 hours (under 25 ℃ with a fully
charged battery, measuring once for
every thirty minutes)
Constant angle measuring mode

Number of measurements

About 12000

1:Refer to the conditions of good weather and the goal of  KODAK CAT NO.E1527795 (90% of reflecting surface)
The provision of the indicators is with reference to the “enterprise
standard Q / 320507 ATS HGR01-2010 type total station”.

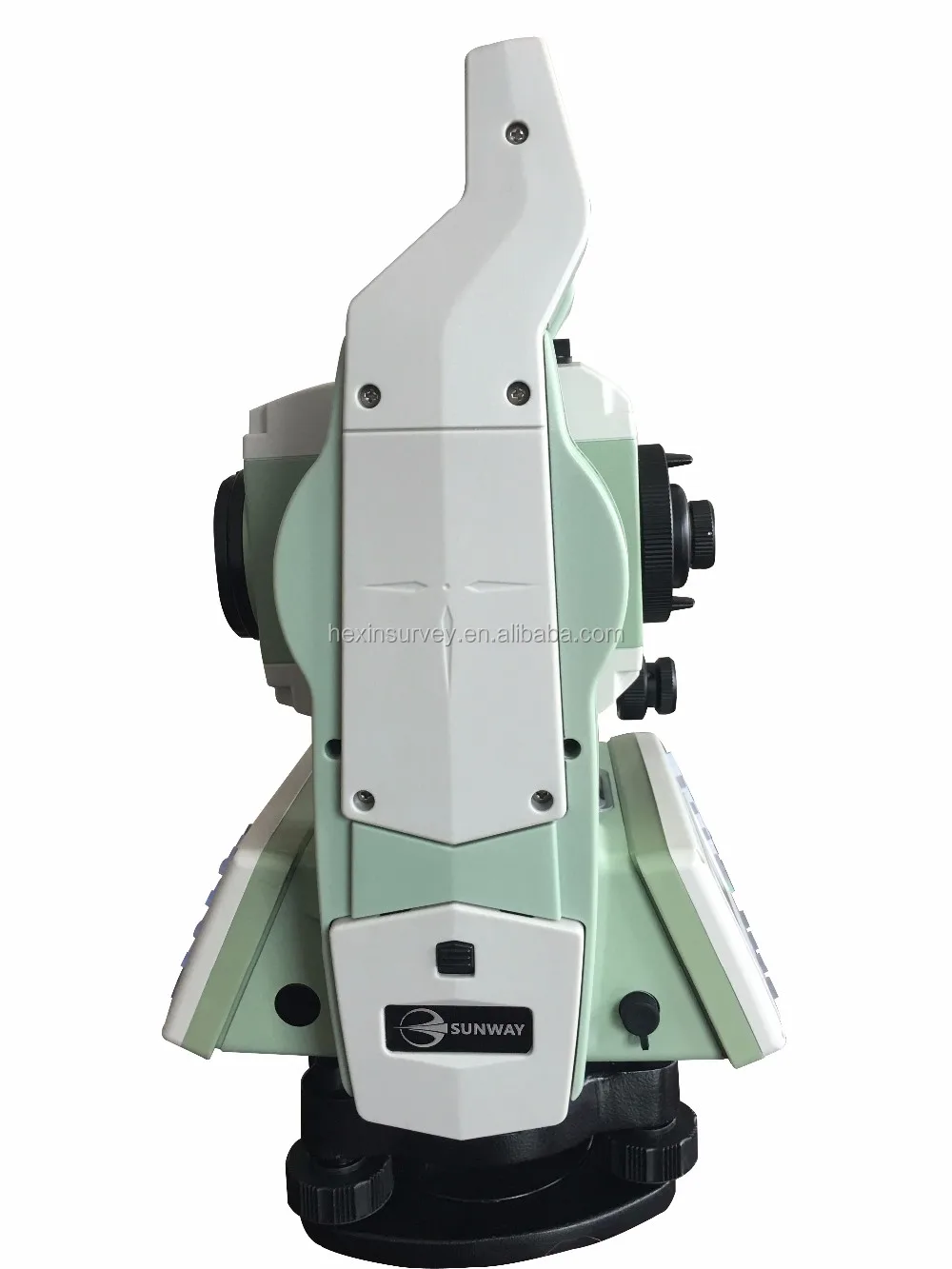

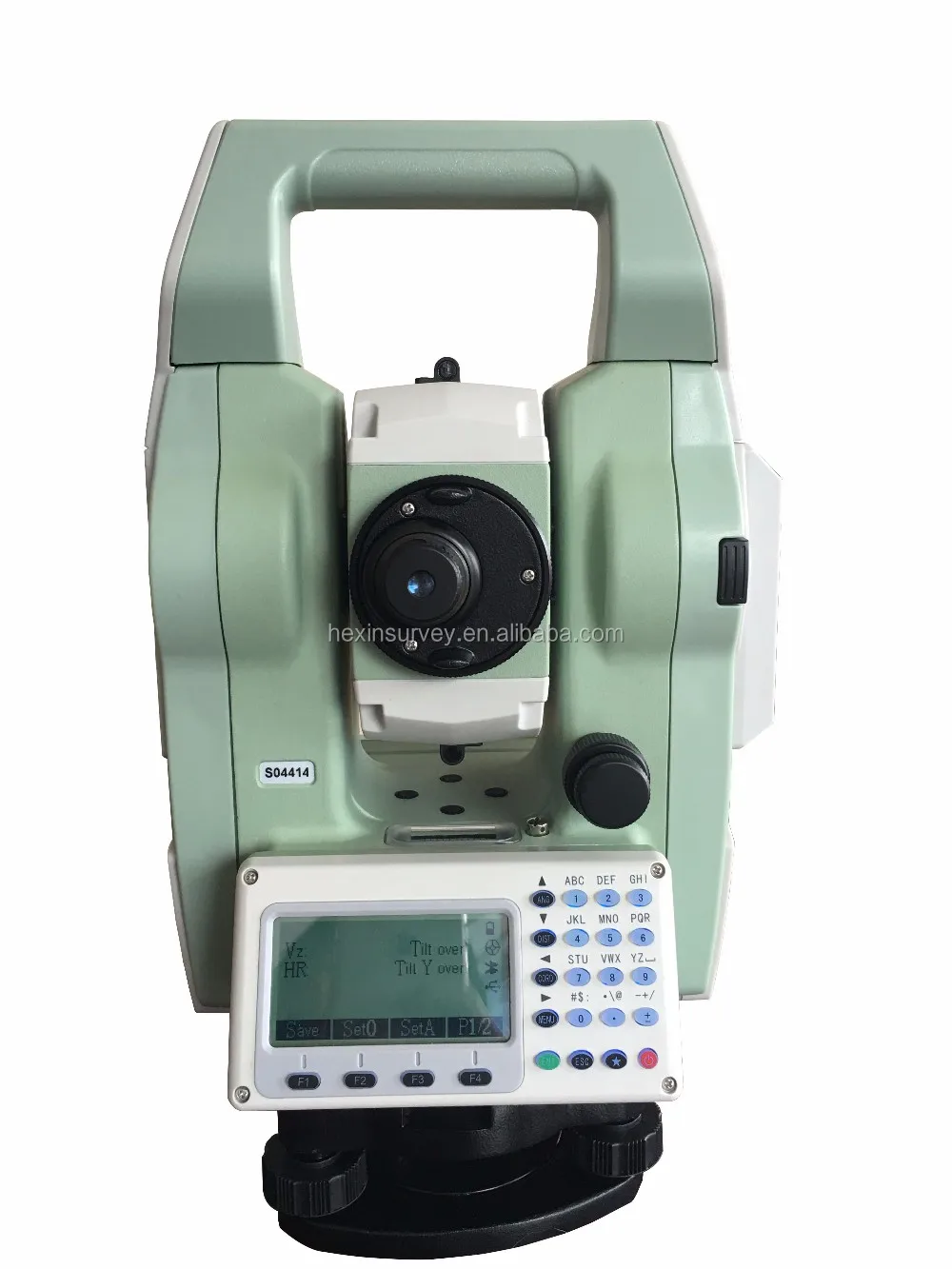

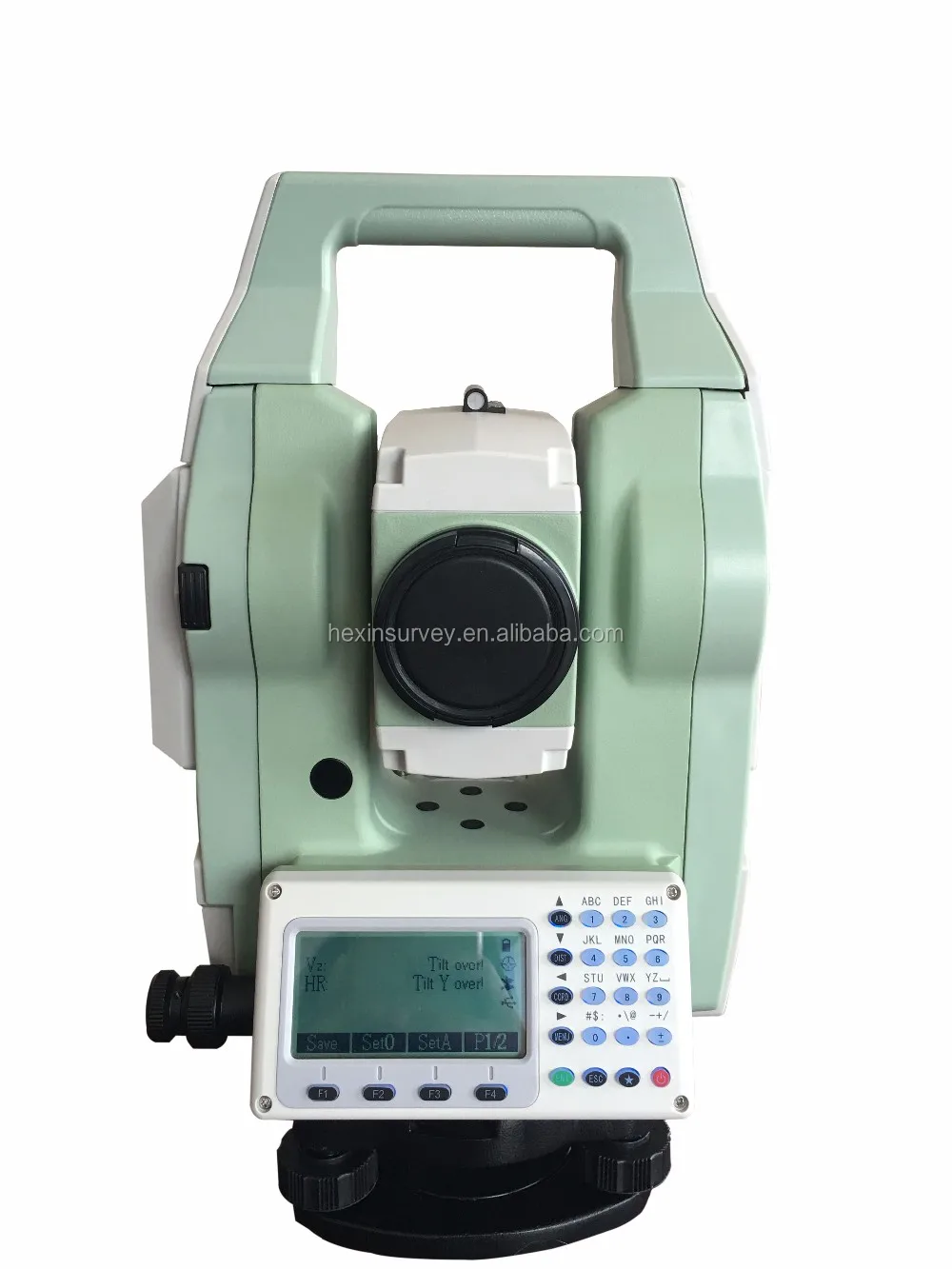

product show
