High accuracy CX series Sokkia CX105 total station

FOB Reference Price:Get Latest Price
$5,000.00 - $7,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Model Number:
CX105 5"

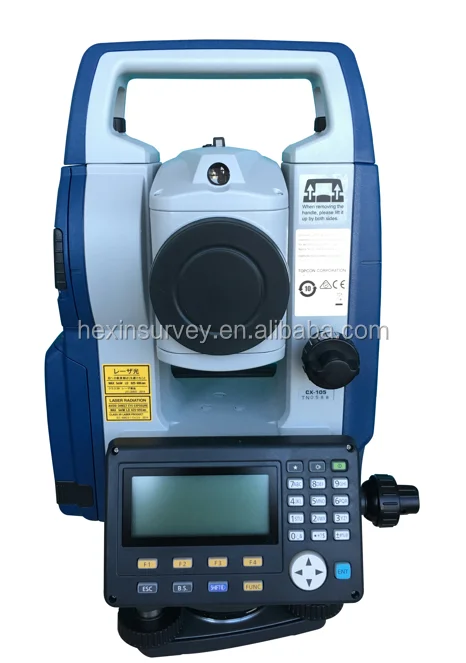

Sokkia CX105 total station
1 prism:
5000 m
Data storage:
Internal memory 10,000 points+USB flash memory
Providing the ultimate security and maintenance capabilities
Dual-axis liquid tilt sensor
Longest Battery Life:
36 Hours
Accuracy(ISO 17123-3:2001):
Graphic LCD, 192 x 80 dots, backlight, contrast adjustment
Dust and water protection:
Battery Type:
Li-ion rechargeable battery
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Size: 60cm x 55cm x 45cm
Lead Time :
2-3 working days after payment confirmed

High accuracy CX series Sokkia CX105 total station

Product Description


 The All New Sokkia CX: Inspired by Tradition, Ready for The Future




RED-tech Technology
Reflectorless EDM
 • Fastest measurment time in its class.


• Sokkia traditional pinpoint precision in reflectorless distance measurement.


• Reflectorless operation from 30cm to 500m.


• Coaxial EDM beam and laser-pointer provide fast and accurate aiming.


• Ensures accuracy even with reflective sheets.


Long-Range Bluetooth Technology


• The CX series of total stations features Bluetooth Class1 wireless technology for reliable data communications.


• All CX data is instantly available at the Bluetooth-equipped controller.


Advanced Angle Measurement System


• CX features Sokkia's original absolute encoders that provide long-term reliability in any job site condition.

  Dual-axis compensator ensures stable measurements even when setup on uneven terrain.


• Sokkia’s traditional motion clamp and tangent screw are employed to ensure stable angle measurement.


• CX-101 and CX-102 feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurement.


The Longest Battery Life -36 Hours!


• The CX single battery can last up to 36 hours.


• Greatly reduces likelihood of low power during any full-days work.


• Eliminates the need for nightly recharging or carrying extra batteries.




Every CX total station is equipped with a telematics-based multifunction communications module providing the ultimate security and maintenance capabilities for your investment.


If an activated instrument is lost or stolen, you can send a coded signal to the instrument and disable it – Your total station is secure anywhere in the world!


And, in the same module, you have daily connectivity to cloud-based Sokkia servers that can inform you of available software updates and firmware enhancements.






Specification :




Magnification / Resolving power

30x / 2.5"


Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM),Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels

Angle measurement

Display Resolution

1" / 5"(0.0002 / 0.001gon, 0.005 / 0.02mil)

Accuracy (ISO 17123-3:2001)


IACS (Independent Angle Calibration System)


Dual-axis compensator / Collimation compensation

Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available

Distance measurement

Laser output *1

Reflectorless mode: Class 3R / Prism / sheet mode: Class 1

Measuring range (under average conditions*2)


0.3 to 500m(1.0 to 1,640ft.)

            Reflective sheet*4/*5

RS90N-K: 1.3 to 500m (4.3 to 1,640ft.) , RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.)

            Mini prisms

CP01: 1.3 to 2,500m (8,200ft.), OR1PA: 1.3 to 500m (1,640ft.)

            One AP prism

1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)

            Three AP prisms

to 5,000m (16,400ft.) / Under good conditions*6: to 6,000m (19,680ft.)

Display resolution

Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in.

Accuracy*2 (ISO 17123-4:2001)

(D=measuring distance in mm)


(3 + 2ppm x D) mm*7

            Reflective sheet*4

(3 + 2ppm x D) mm

            AP/CP prism

(2 + 2ppm x D) mm

Measuring time*8

Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)

Interface and Data management

Display / Keyboard

Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight

Control panel location*9

On both faces

Trigger key

On right instrument support

Data storage

            Internal memory

Approx. 10,000 points

            Plug-in memory device

USB flash memory (max. 8GB)


Serial RS-232C, USB2.0 (Type A, for USB flash memory)

Bluetooth modem (factory option)*10

Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 300m (980ft.)*11



Coaxial red laser using EDM beam

Guide light*12

Green LED (524nm) and Red LED (626nm),

 Operating range: 1.3 to 150m (4.3 to 490ft.)*2



6’ (inner circle)

            Circular level

10' / 2mm

Optical plummet

Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom

Laser plummet (option)

Red laser diode (635nm±10nm), Beam accuracy: ≤1.0mm*1.3m, Class 2 laser product

Dust and water protection

IP66 (IEC 60529:2001)

Operating temperature*13

′-20 to +50ºC (-4 to +122ºF)*2

Size with handle*9

Contorol panel on both faces: W191 x D181 x H348mm (W7.5 x D7.1 x H13.7in.)

Control panel on one face: W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)

Weight with handle and battery

Approx. 5.6kg (12.3 lb.)

Power supply


            BDC70 detachable battery

Li-ion rechargeable battery

Operating time (20ºC)



Approx. 36 hours (single distance measurement every 30 seconds)

         External battery*14(option)

BDC60: approx. 44 hours, BDC61: approx. 89 hours (single distance measurement every 30 seconds
