Topcon GTS1002 total station surveying equipment

FOB Reference Price:Get Latest Price
US $3,000-3,500 / Pieces | 1 Piece/Pieces packing: 1pcs/ctn (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Topcon
Model Number:
GTS-1002
name:
Topcon GTS1002 total station
Accuracy:
2''
Reflectorless:
0.3 ~ 350m,RS90N-K:1.3 ~ 500m
One prism:
1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m
Compensator:
Dual-axis liquid tilt sensor
Method:
Absolute
Interface:
RS-232C; USB2.0
Internal memory:
10,000pts.
Dust and water protection:
IP66
Working time:
25 hours
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packaging Details: Topcon GTS-1002 total station
Size: 35cm x 45cm x 55cm
1pc/ctn
Weight:13kg
Port
Shanghai
Lead Time :
2-3 working days after payment confirmed
Product Description



Topcon GTS1002 total station surveying equipment



The high-value, low-cost surveying  instrument designed specifically
for construction and forensics



Improved EDM,Measuring Faster,More Powerfor

Reflectorless,Reflector,prism three kinds of measure model

Rugged and User-friendly Design

Strong shell. IP66

-20 ~ +60°C Working Temperature

USB Data Communication

One battery operation up to 25 hours

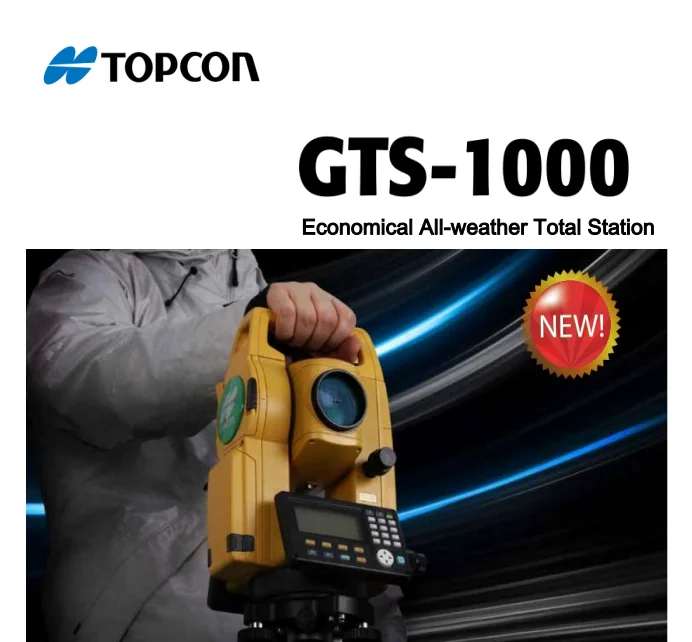

GTS-1000 Series



All-weather economical Total Station



GTS-1000 series are Topcon (Beijing) Technology



Development Ltd in 2017 newly released a new generation economical all-weather economical total station.Especially for the bad environment for all aspects of optimization desigh.



Fast, powerful measure system



•Using phase technology can effectively guarantee the accuracy of measurement



  • Fast distance measurement of 0.9s regardless of object.



• 30 cm to 350 m non prism range



  • 1.3 m to 500 m reflector plate test S



  •The smallest facula enlarged the scope of measuring object.



• Dependable measurement even at shallow incidence angles.



•Dependable measurement even at shallow incidence angles.






The narrow laser beam EDM not only can accurately measure the metope, angular point, ground, manhole covers etc. Light incident angle target, also can measure the high tension line or tree branches.



• With unique absolute technology to ensure

Under the condition of continuously measuring accuracy of reliability



• Dual-axis compensator can ensure the instrument in the bad environment still keep level



   • 30cm to 350m non prism distance measurement.






 • USB - type A interface can be directly inserted into the USB flash drive.insert Into the usb flash drive and close the cover after still can ensure IP66 Protection grade






Solid shell and friendly visual interface design






• Dust and water protection IP66



• The high adaptability range of temperature 20 ℃ ~ + 60 ℃

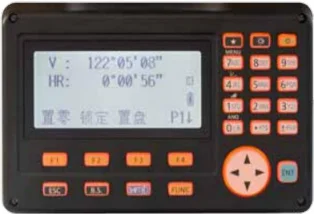

• Control panel consists of 25 keys pad (with alphabet entry) with LCD for easy viewing of graphics






 • Double number/letter keyboard, operating more quickly




Specification :

Model

GTS-1002

Telescope

Magnification/Resolving power

30X/2.5"





Length: 150mm, Objective aperture: 45mm (EDM:48mm),

   Other

Image: Erect, Field of view: 1°30' (26m/1,000m),





Minimum focus:  1.3m



Angle measurement

Display resolutions

1"/5"

Accuracy (ISO 17123-3:2001)

2''

Method

Absolute

Compensator

Dual-axis liquid tilt sensor, working range:  ±6′

Distance measurement

Laser output level

Non prism:3R Prism/ Reflector  1

Measuring range





(under average conditions *1 )







Reflectorless

0.3 ~ 350m





RS90N-K:1.3 ~ 500m



Reflector

RS50N-K:1.3 ~ 300m





RS10N-K:1.3 ~ 100m



Mini prism

1.3 ~ 500m



One prism

1.3 ~ 4,000m/ under average conditions *1 : 1.3 ~ 5,000m

Accuracy

Reflectorless

(3+2ppm×D)mm



Reflector

(3+2ppm×D)mm



Prism

(2+2ppm×D)mm

Measurement time

Fine: 1mm: 0.9s  Coarse: 0.7s, Tracking: 0.3s

Interface and Data management

Display/keyboard

Adjustable contrast, backlit LCD graphic display /



With backlit 25 key (alphanumeric keyboard)

Control panel location

On both faces

Data storage





Internal memory

10,000pts.



External memory

USB flash drives (maximum 8GB)

Interface



RS-232C;  USB2.0

General

laser Designator

Coaxial red laser

Levels

Circular level

±6′



Plate level

10′ /2mm

Optical plummet telescope

Magnification: 3x, Focusing range: 0.3m to infinity,

Dust and water protection

IP66

Operating temperature

-20 ~ +60℃

Size



191mm(W)×181mm(L)×348mm(H)

Weight



5.6kg

Power supply

Battery



BT-L2  lithium battery

Working time

25 hours
