Factory price 30X Sokkia CX105 total station china

FOB Reference Price:Get Latest Price
$6,000.00 - $7,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Model Number:
CX105 5"
Product name:
Sokkia CX105
Working Time:
Single Prism:
Internal Memory:
10,000 points
Date Interface:
RS232, USB2.0
Water proof & dust proof:
Display Resolution:
1" / 5"
Supply Ability
Supply Ability:
60 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

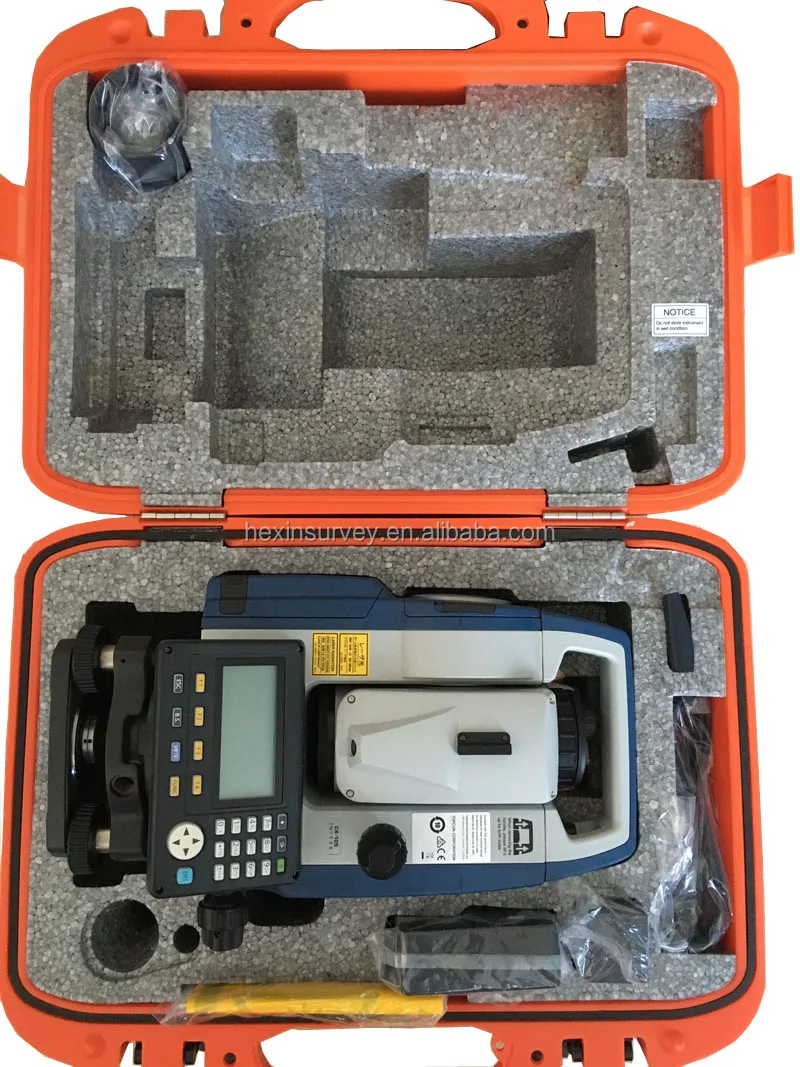

Engineering case with bubble plastic lining +paper carton
Lead Time :
2-5workday after payment confirmed
Product Description

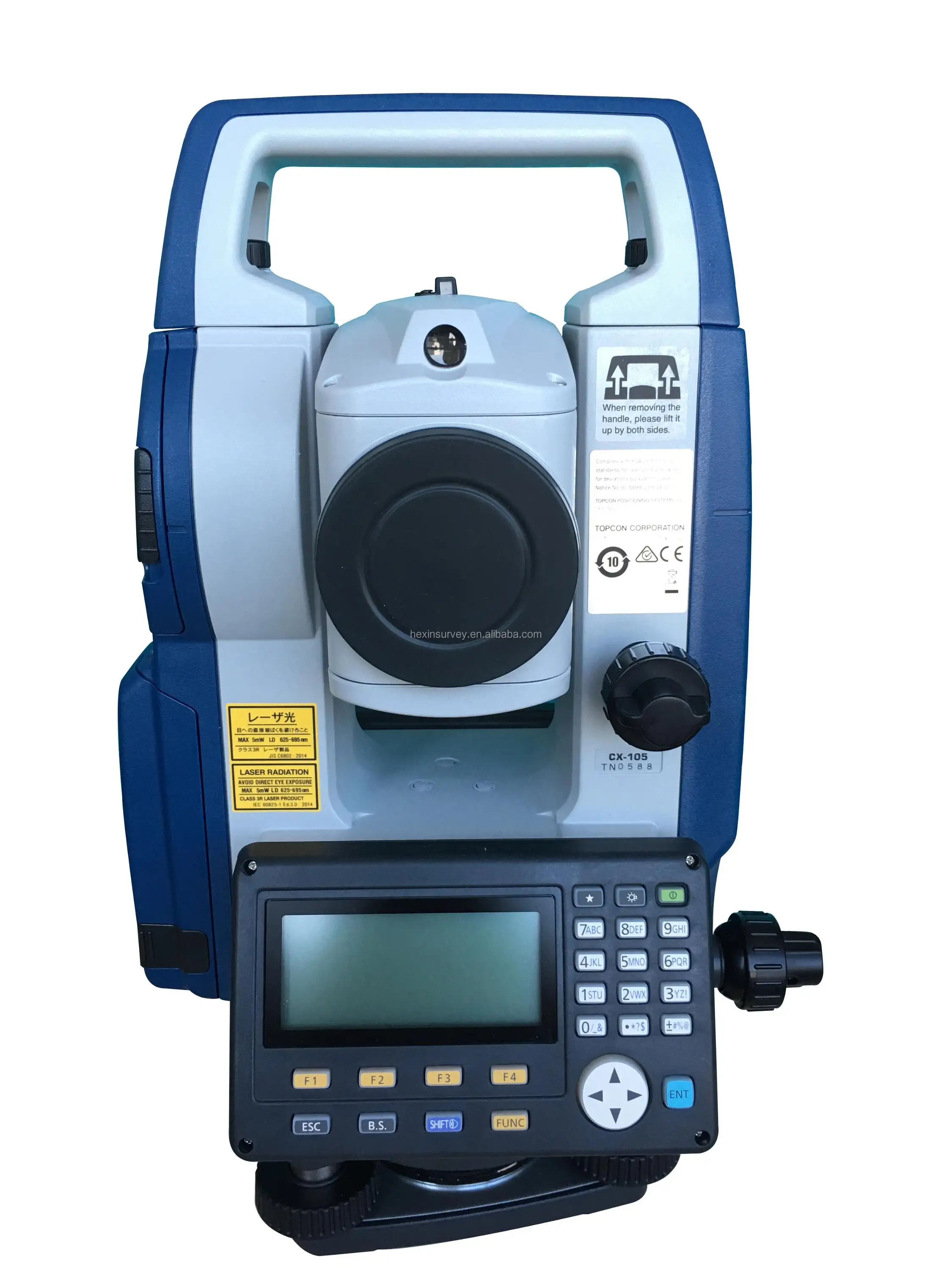

Sokkia CX105 Total station





Magnification / Resolving power

30x / 2.5"


Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM),Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels

Angle measurement

Display Resolution

1" / 5"(0.0002 / 0.001gon, 0.005 / 0.02mil)

Accuracy (ISO 17123-3:2001)


IACS (Independent Angle Calibration System)


Dual-axis compensator / Collimation compensation

Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available

Distance measurement

Laser output

Reflectorless mode: Class 3R / Prism / sheet mode: Class 1

Measuring range (under average conditions)


0.3 to 500m(1.0 to 1,640ft.)

            Reflective sheet

RS90N-K: 1.3 to 500m (4.3 to 1,640ft.) , RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.)

            Mini prisms

CP01: 1.3 to 2,500m (8,200ft.), OR1PA: 1.3 to 500m (1,640ft.)

            One AP prism

1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)

            Three AP prisms

to 5,000m (16,400ft.) / Under good conditions: to 6,000m (19,680ft.)

Display resolution

Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in.

Accuracy (ISO 17123-4:2001)

(D=measuring distance in mm)


(3 + 2ppm x D) mm

            Reflective sheet

(3 + 2ppm x D) mm

            AP/CP prism

(2 + 2ppm x D) mm

Measuring time

Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)

Interface and Data management

Display / Keyboard

Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight

Control panel location

On both faces

Trigger key

On right instrument support

Data storage

            Internal memory

Approx. 10,000 points

            Plug-in memory device

USB flash memory (max. 8GB)


Serial RS-232C, USB2.0 (Type A, for USB flash memory)

Bluetooth modem (factory option)

Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 300m (980ft.)



Coaxial red laser using EDM beam

Guide light

Green LED (524nm) and Red LED (626nm),

 Operating range: 1.3 to 150m (4.3 to 490ft.)



6’ (inner circle)

            Circular level

10' / 2mm

Optical plummet

Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom

Laser plummet (option)

Red laser diode (635nm±10nm), Beam accuracy: ≤1.0mm*1.3m, Class 2 laser product

Dust and water protection

IP66 (IEC 60529:2001)

Operating temperature

′-20 to +50ºC (-4 to +122ºF)

Size with handle

Contorol panel on both faces: W191 x D181 x H348mm (W7.5 x D7.1 x H13.7in.)

Control panel on one face: W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)

Weight with handle and battery

Approx. 5.6kg (12.3 lb.)

Power supply


            BDC70 detachable battery

Li-ion rechargeable battery

Operating time (20ºC)



Approx. 36 hours (single distance measurement every 30 seconds)

            External battery(option)

BDC60: approx. 44 hours, BDC61: approx. 89 hours (single distance measurement every 30 seconds

 Key Feature


1. Fast, powerful Ranging System

a. Use phase technology to quickly and accurately targeting
b.0.9 seconds fast distance measurement (for anything)
c shortest non-prism measurement measuring range - only 30cm
d. Improved high brightness dot sight
e. minimum distance to ensure the accuracy of the distance measurement spot
f. Accuracy reliable (even in the shallow angle of incidence)
g. to ensure the accuracy ranging reflection sheet
2. The long-distance wireless data communication
a.Class 1 * remote Bluetooth communication
b.Class 1 * Bluetooth ensures long distance communication and communication connection is stable
c. Total Station and mirror station data logger (both equipped with Bluetooth) Bluetooth connectivity directly to speed up the measurement speed, so that the station can only targeting
3. Advanced angle measuring system
a.CX absolute encoder angle measurement technology ensures precision angle measurement under any conditions. Biaxial compensation angle measurement instrument to ensure accuracy under harsh terrain environments.
b. the brake screw and micro screw to ensure a stable angle measurement
c.CX-101 and CX-102 uses a revolutionary angle measurement technology to ensure stable and reliable angle measurement accuracy.
4. Long working time 36 hours
Only one battery can last for 36 hours work. Sustainable job one week at a full charge, no additional batteries.
5. The robust housing and friendly visual interface design
1.IP66 dust and waterproof rating
2. The standard temperature range is: -20 ℃ ~ + 50 ℃. Low temperature instruments for the lowest -30 ℃ *, high temperature equipment up to: + 60 ℃ *

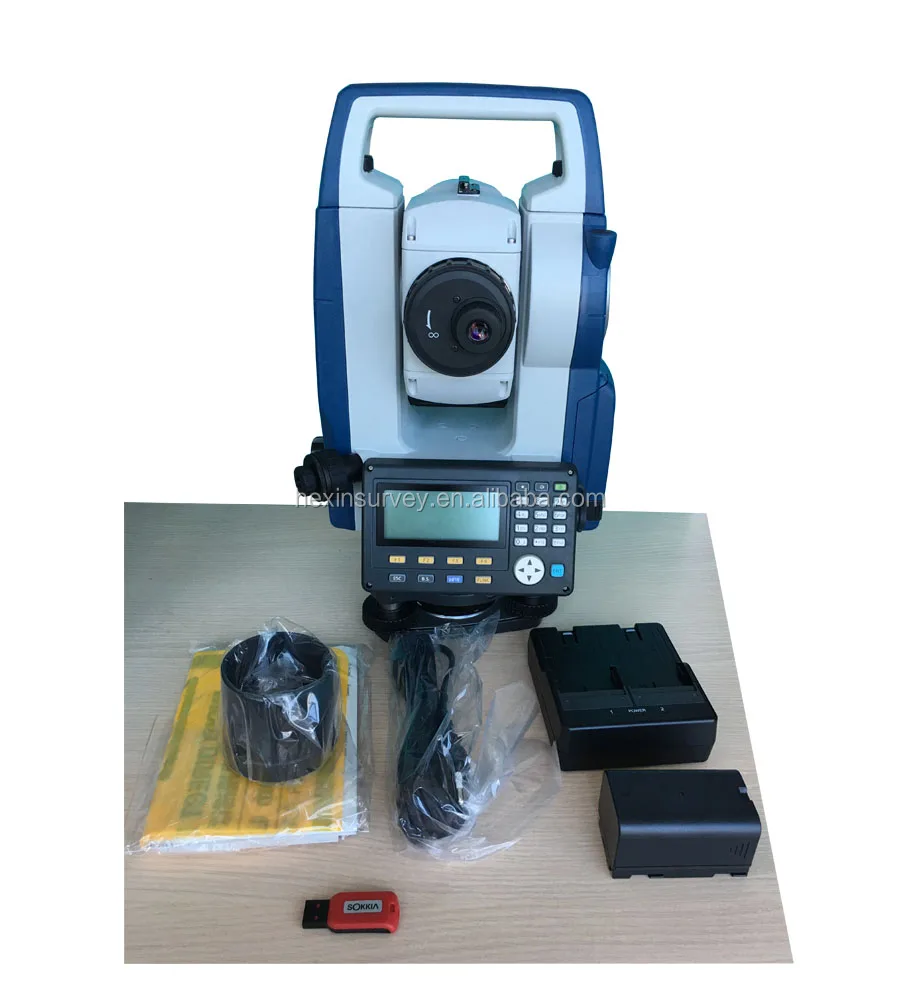

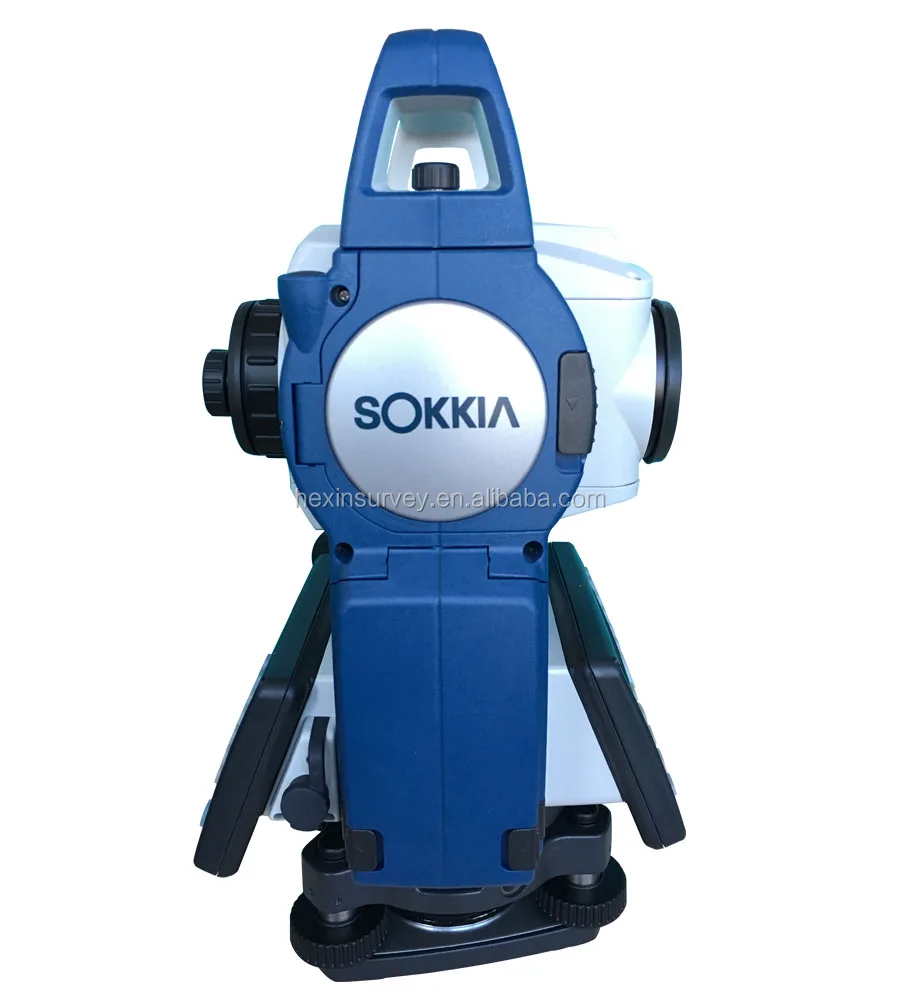

  Product detail
