Sunway total station reflectorless 350m ATS320R total station dtm

FOB Reference Price:Get Latest Price
$1,500.00 - $1,800.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Sunway
Model Number:
ATS320R
Product name:
Sunway ATS320R
Magnification:
30X
Working Time:
16 hours
Ranging with single prism under fine:
2000m
Ranging with reflector:
Nomal:350m Long:800m
Memory data capacity:
20000points
Water proof & dust proof:
IP54
Weight including battery and tribrach:
5.5KG
Setting Accuracy:
1"
shortest target distance:
1.5m
Supply Ability
Supply Ability:
60 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Engineering case with bubble plastic lining +paper carton
Size:35*45*55
Weight:13Kg
Port
shanghai
Lead Time :
2-5workday after payment confirmed
Product Description

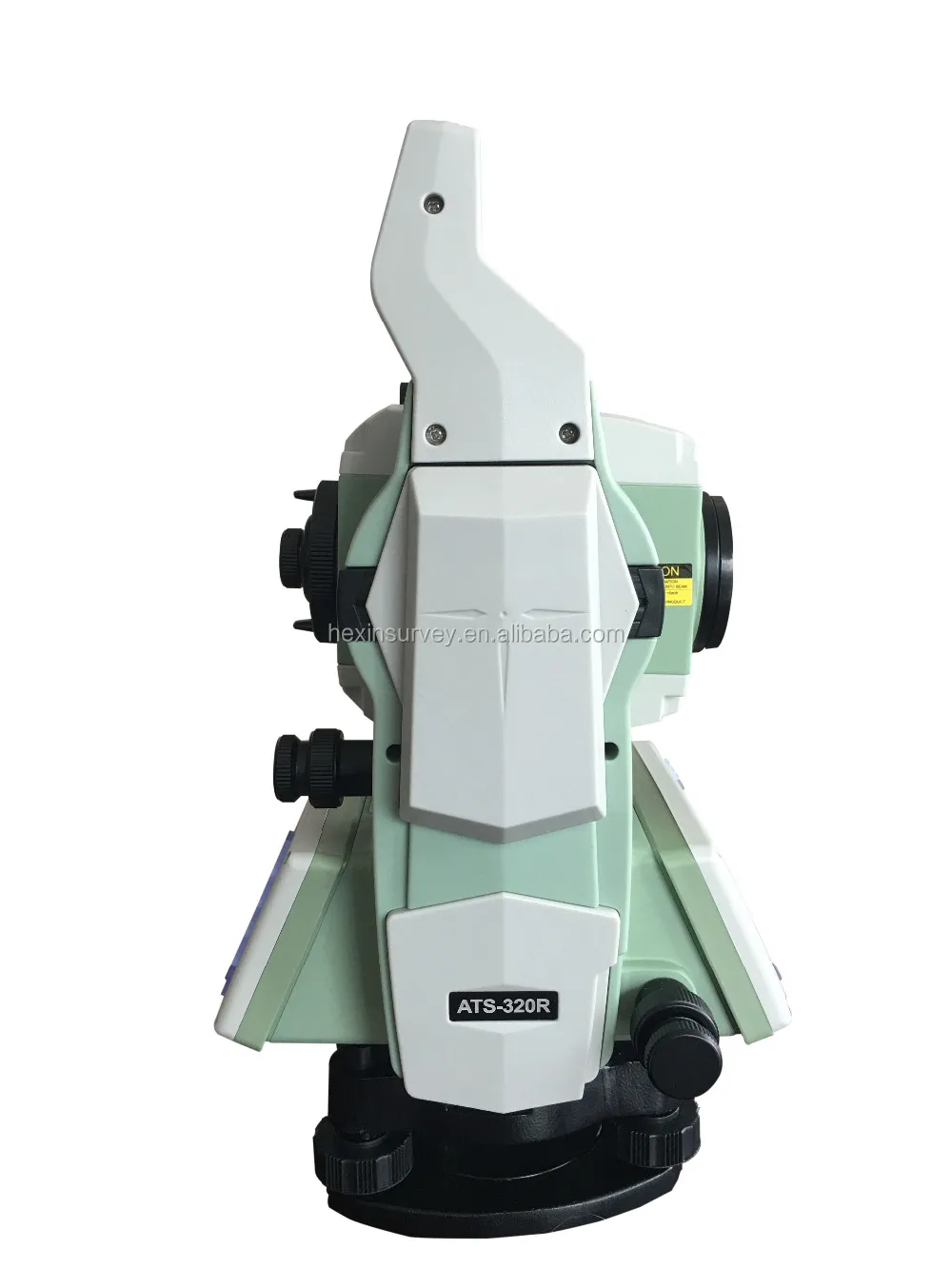

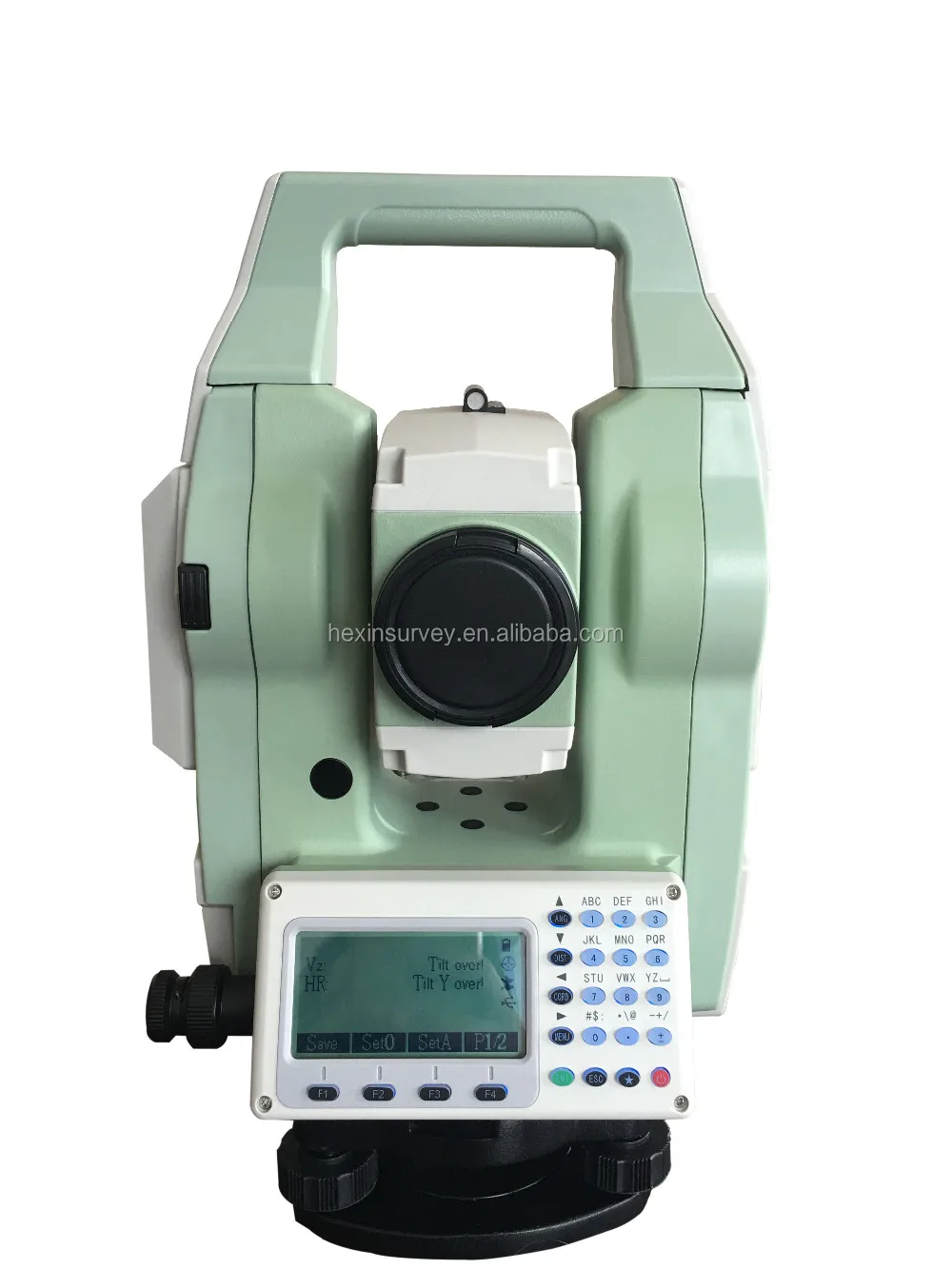

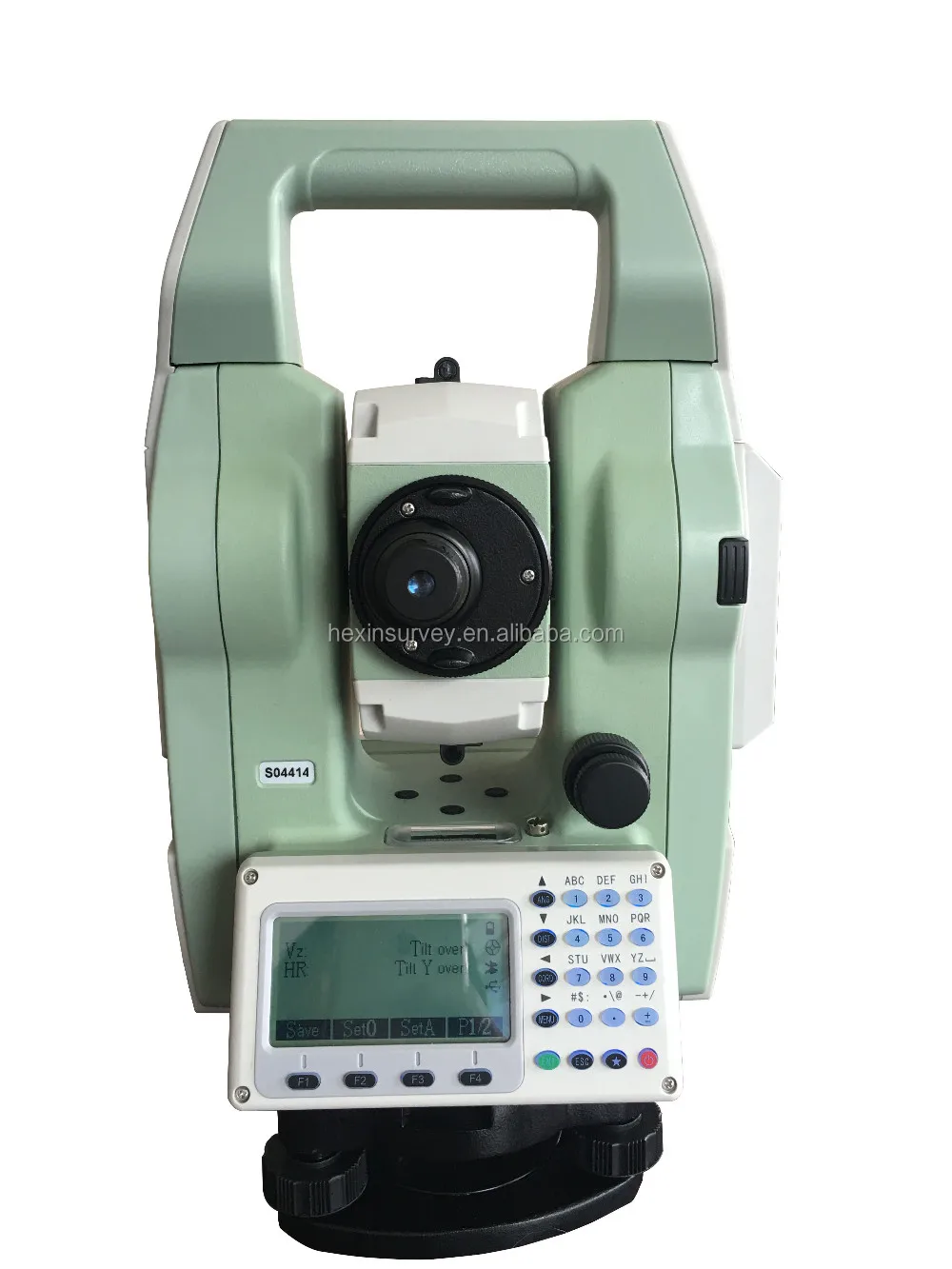

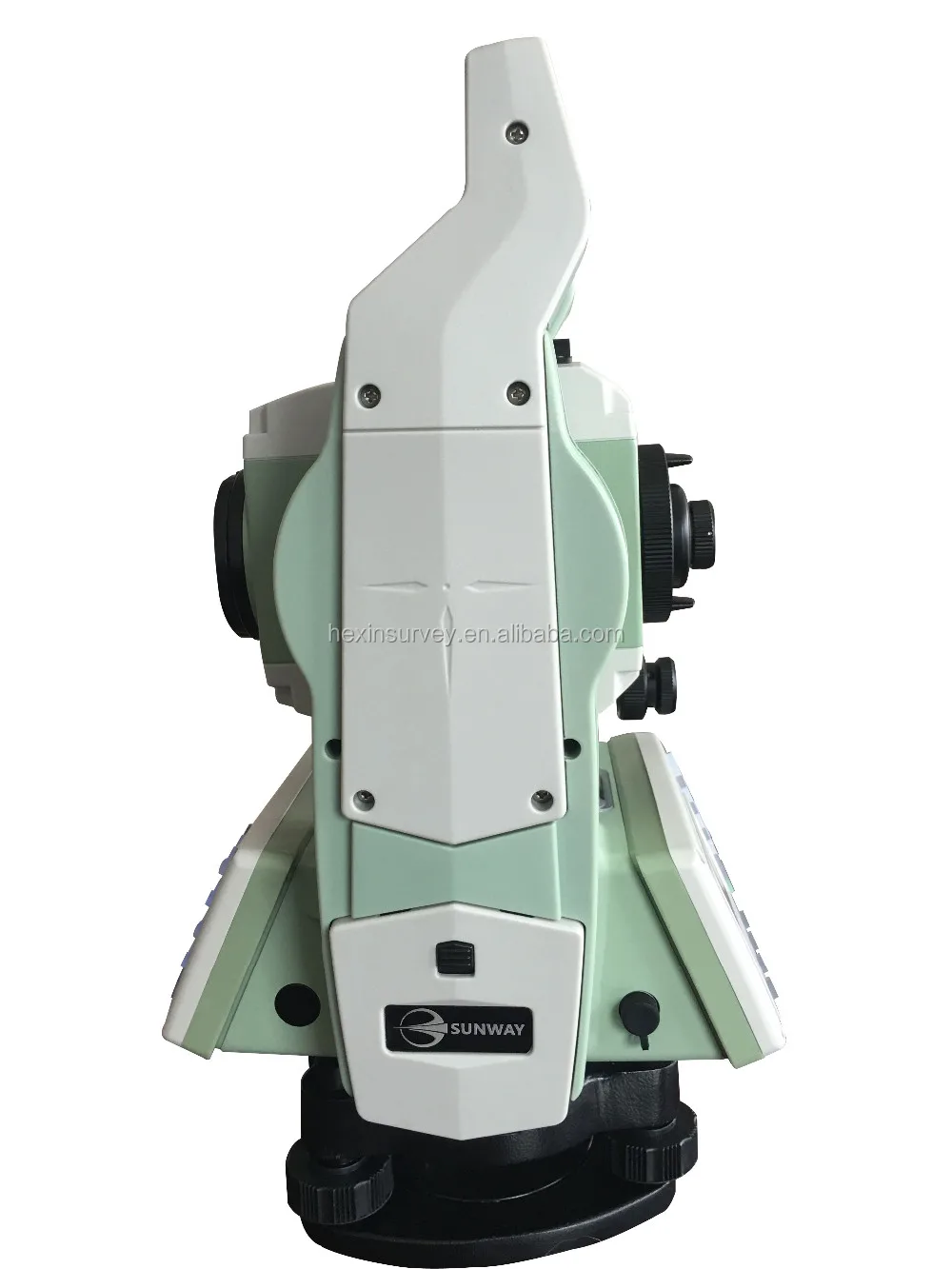

 Sunway ATS-320R Total station


Technical parameters



Serial

General total station

Angle measurement (Hz, V)

Theory used

Absolute encoder

Minimum reading

1″

Precision

2″

Telescope

Magnification

30x

Field of view

1°30′

shortest target distance

1.5m

Reticle

illuminated

Compensator

System

Integrated liquid Dual-axis compensator

Working range

±3′

Setting Accuracy

1″

Distance measurement (IR)

Ranging with single prism under fine/middling pressure

2000m/2500m

Ranging with reflector

Nomal:350m
Long:800m

Precision (precise, coarse
measurement, tracking)

2mm±2ppm

Measuring time (single/
repeated/tracking)

2.4s/ 1s/ 0.6s

Distance measuring with Non-prism

Ranging with white target plate

350m (for shortdistance with non-prism 1measurement)

Ranging with single prism

>7500m

recision (short distance/tracking/prism)

3mm±2ppm

Time for a measurement
(short distance/tracking/prism )

1.5 s

Communication

Internal data storage

20000 points

Port

Standard RS232 serial port

Data format

ASCII

Operation

Operating system

RTS

Display

Graphics: 192x96 pixel; Characters:
6 lines x 25 characters; LCD

Keyboard(Optional 2nd keyboard)

Double-sided numeric keyboard

Laser Plumb

Type

Laser point, brightness adjustable in steps

Accuracy

1mm (instrument height: 1.5m)

Environment conditions

Temperature range (operation)

-20~+50

Temperature range (storage)

-40~+70

Water proof & dust proof (according to standard IEC60529)

IP54

Weight including battery and tribrach

5.5kg

Battery supply

Type

High-energy lithium battery

Voltage / capacity

7.4 V; 3000 mAh

Working duration

16 hours (under 25 with a fully
charged battery, measuring once for
every thirty minutes)
Constant angle measuring mode

Number of measurements

About 12000

1:Refer to the conditions of good weather and the goal of  KODAK CAT NO.E1527795 (90% of reflecting surface)
The provision of the indicators is with reference to the “enterprise
standard Q / 320507 ATS HGR01-2010 type total station”.


  Product detail







Our Services


1.Any inquiries will be replied within 12 hours.

2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.

3.All products will have been strictly quality checked in factory before seding out.



Terms of payment

Generally, we accept Irrevocable LC at sight, Advance T/T, Paypal, Escrow and West

union.If you prefer other payment terms, please let us know.
