2017 hot sale Magnification 30X types of total station Sunway ATS420R

FOB Reference Price:Get Latest Price
$1,500.00 - $1,800.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Sunway
Model Number:
ATS420R
Product name:
low price Sunway ATS420R
Magnification:
30X
Working Time:
16 hours
SinglePrism:
3000m
Reflector(60mm*60mm):
800m
Minimum sight:
1.5m
Accuracy:
2mm+2ppm
Measuring Time:
2.4s/1s/0.6s
No Prism Odometry:
350m
Memory data capacity:
20000points
Supply Ability
Supply Ability:
60 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Engineering case with bubble plastic lining +paper carton
Size:35*45*55
Weight:13Kg
Port
shanghai
Lead Time :
2-5workday after payment confirmed
Product Description
 Sunway ATS-420R


Model

ATS-420R

Angle measurement



Angle measuring method

Absolutely code

Minimum readout

1

Angleaccuracy

2

Telescope



Magnification

30X

Field of view

1°30

Minimum sight

1.5m

Reticle

illuminated

Compensator



System

Dual -axis liquid-electric/ Single -axis Optional

Working range

±3’

Setting Accuracy

1”

DistanceMeasurement
Reflector(IR)



SinglePrism
(Atmosphere general/good)

3000m

Reflector(60mm×60mm)

800m

Accuracy(Fine/Coarse/Tracking)

2mm+2ppm

Measuring Time
(Single/Repeat/Traking)

2.4s/1s/0.6s

No Prism ranging(RL)



Odometry

350m

Using a white target board



Ranging Accuracy



(Short Distance/Tracking/Prism)

3mm+2ppm

Measurement Time



(Short Distance/Tracking/Prism)

2-6s

Communication



Memory data capacity

20000points(Except for the SD card)

Interface

Standard RS232 serial port(Blutooth optional)

Data format

ASCII

Operation



Operation System

Real-time English Operation System

Display

 Graphics:280*160 Pixels 3.2 inch

Keyboard(Second Keyboard)

Alphanumeric Keyboard

Laser Plummet



Type

Laser spot, step brightness Adjustment

Beam Accuracy

1 mm(1.5m instrument height)

Environmental



Operation Temperature

-20°C~+50°C

Storage Temperature

-40°C~+70°C

Dust &Water proof(IEC60529)

 IP54

Weight



Incl.Battery&Tribrach

5.5kg

Power supply



Battery Type

High capacity Lithium battery

Voltage/Capacity

7.4V 3000mAh

Working Time

16 hours (Optimal,newbattery,measure one time



at 30 seconds 25,24hours

Measure Times

 Around 12000

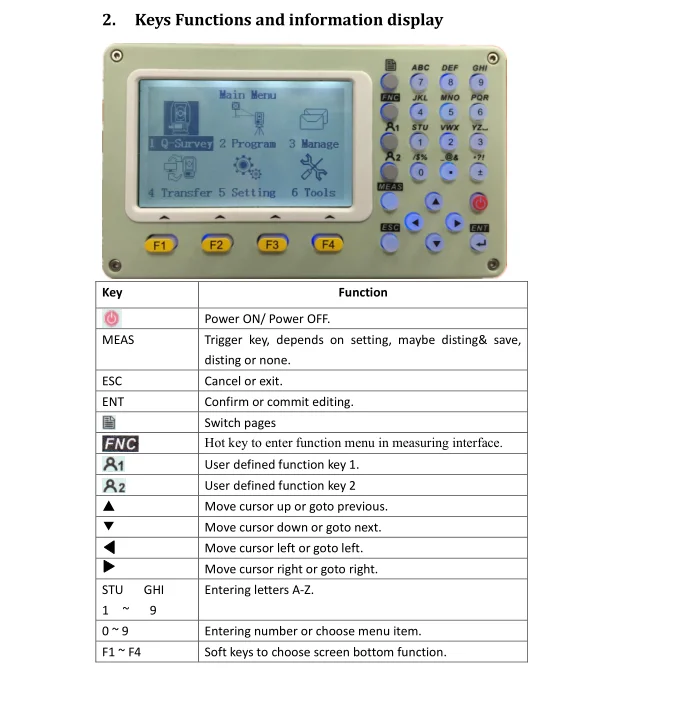

Name and function of eachpart

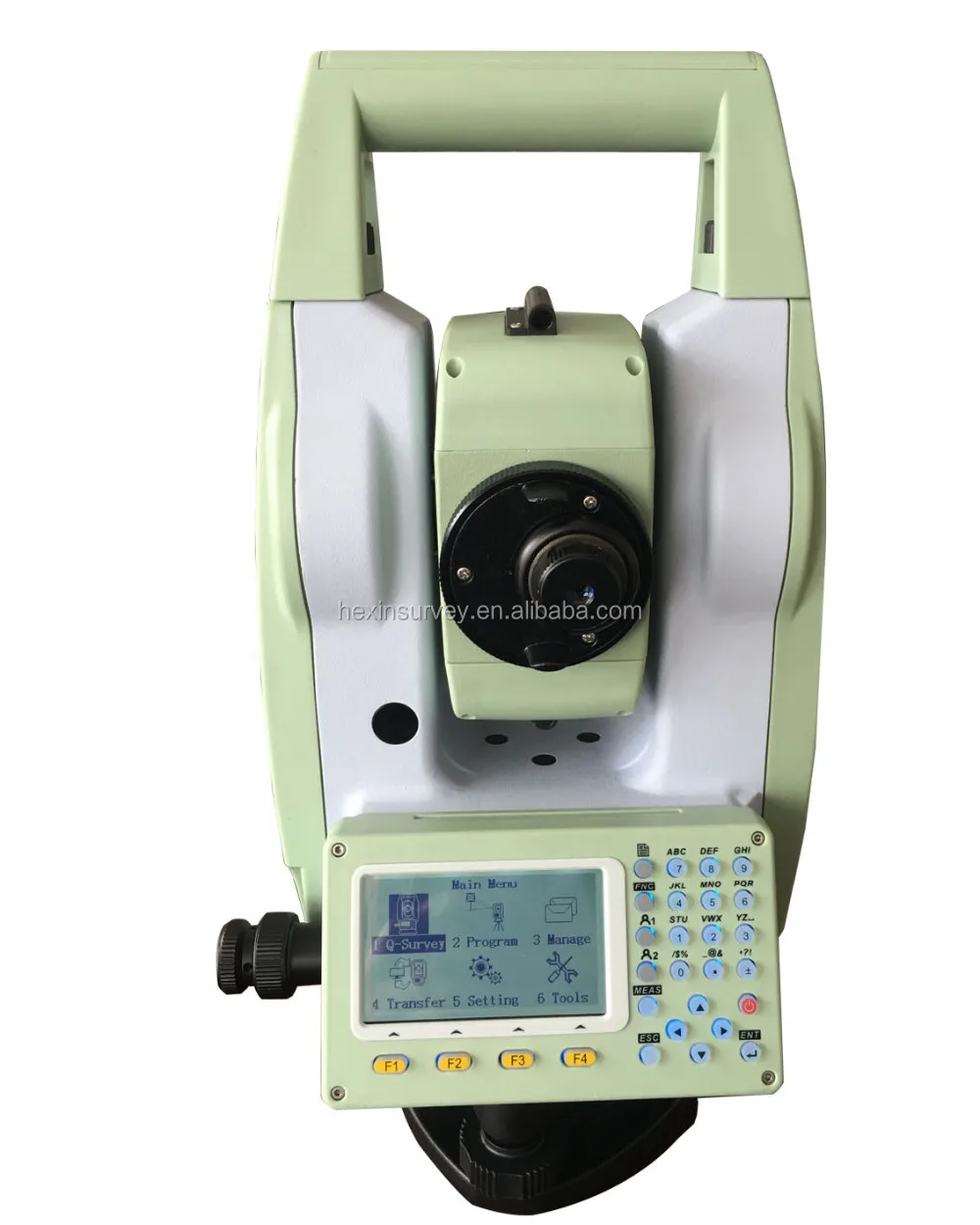

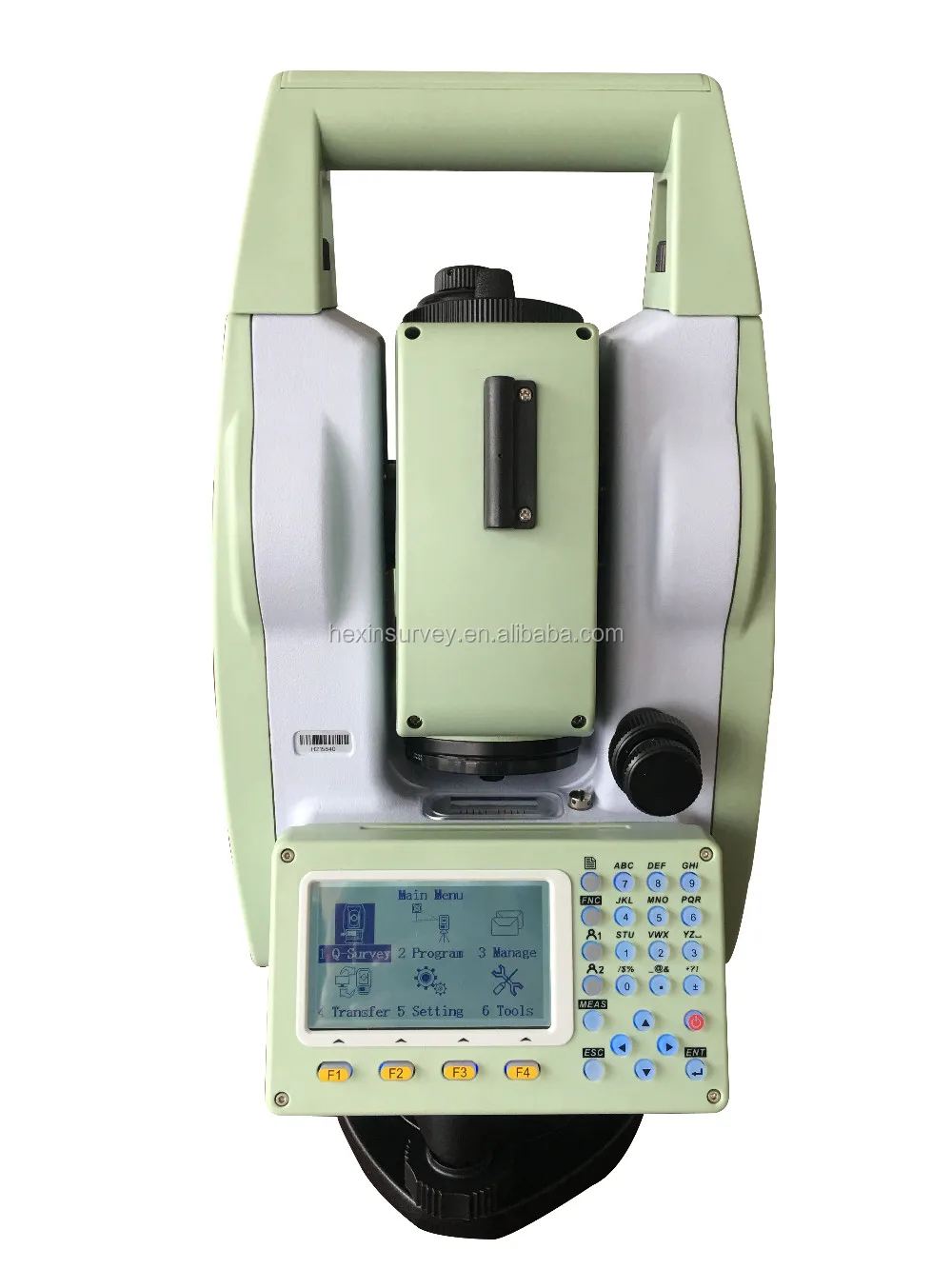

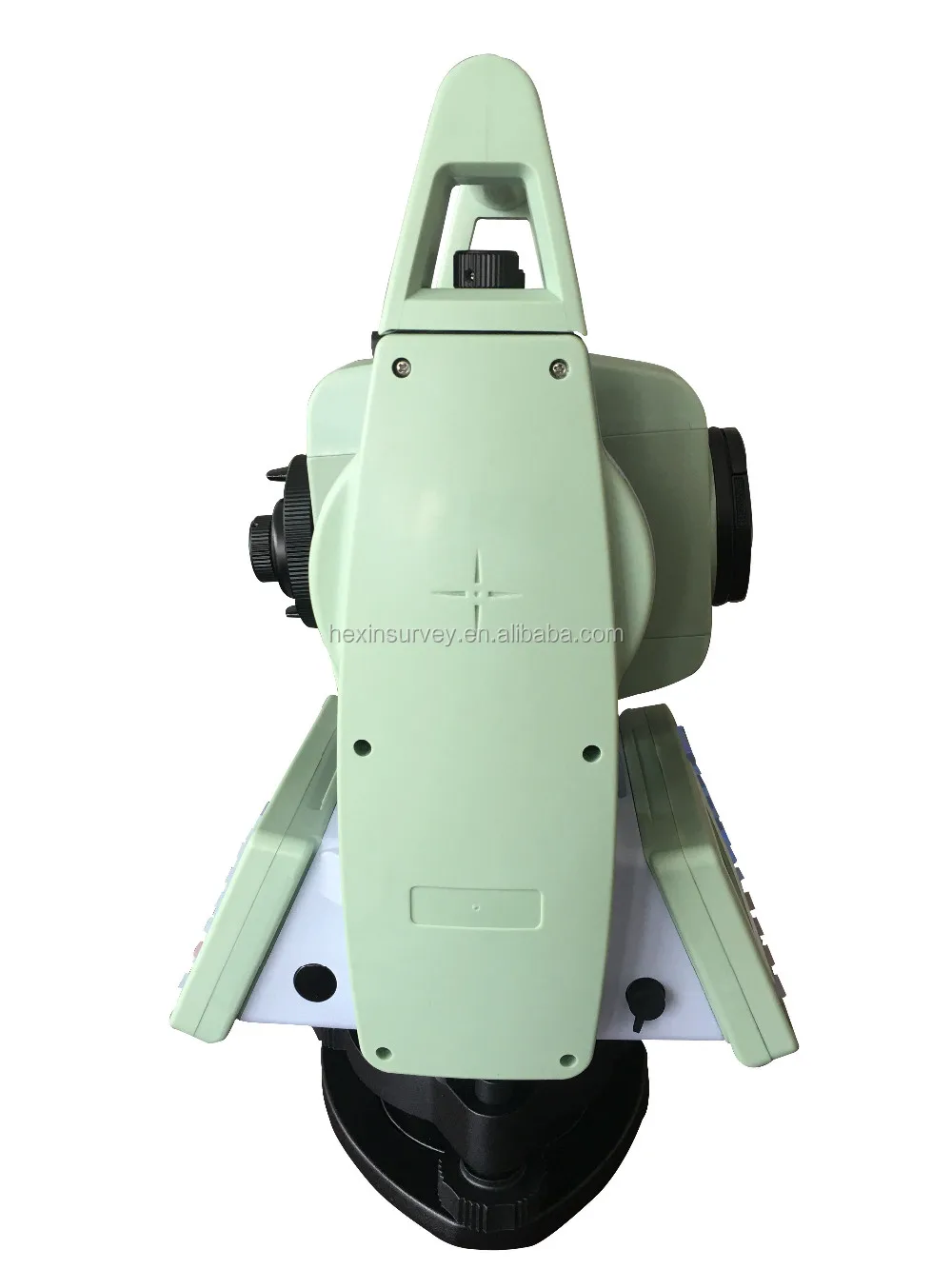

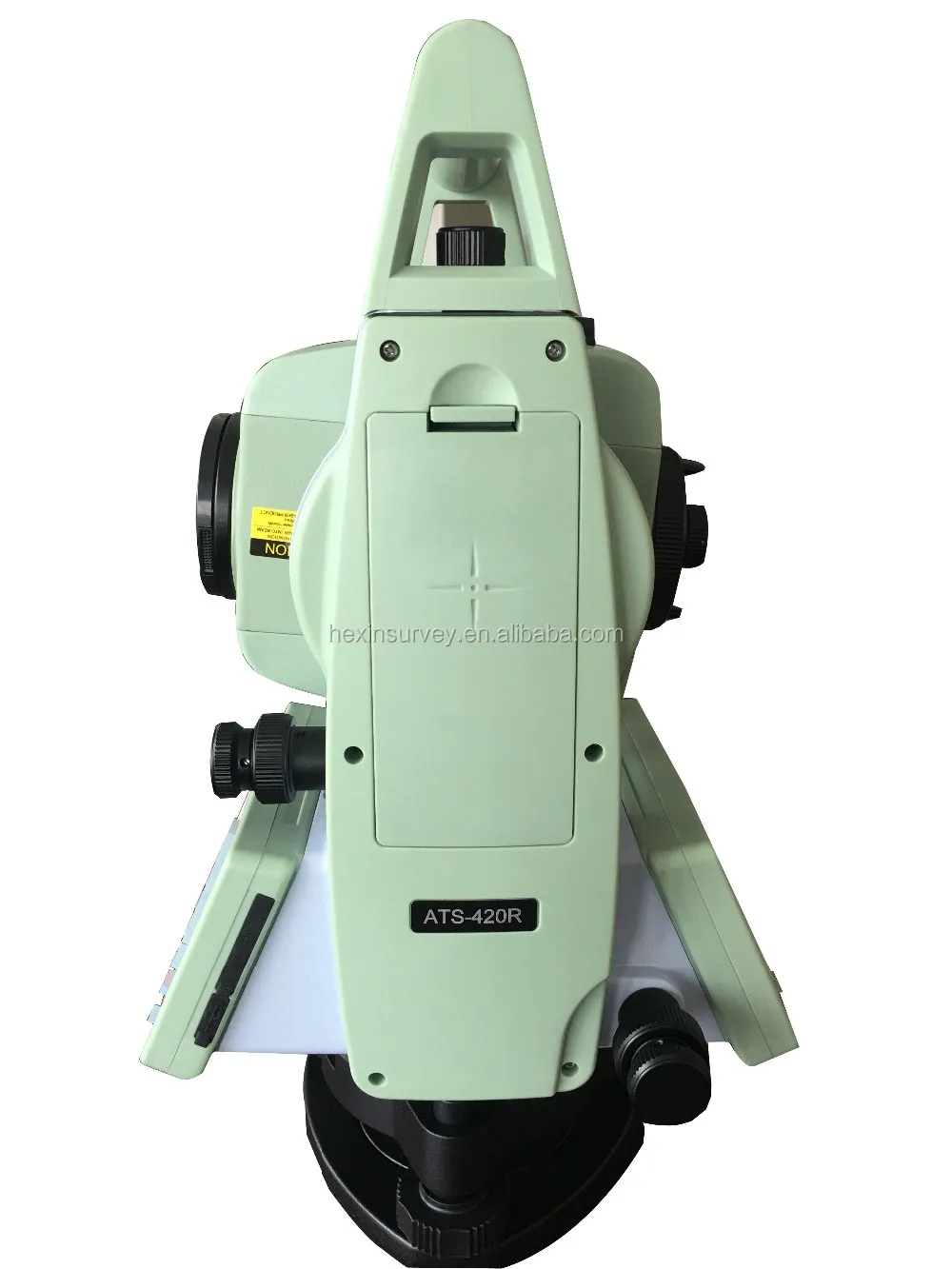

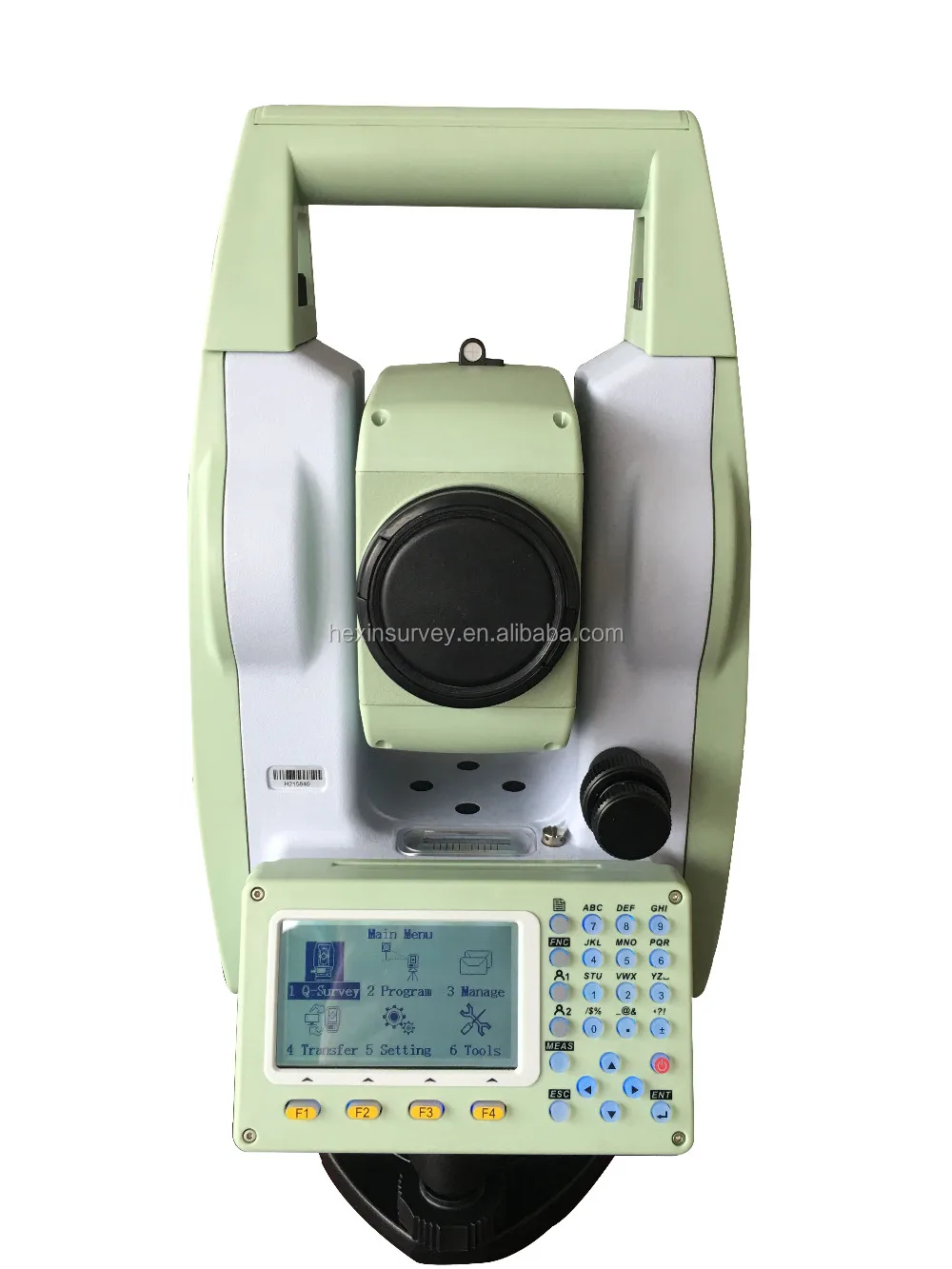

Product detail










Our Services


1.Any inquiries will be replied within 12 hours.

2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.

3.All products will have been strictly quality checked in factory before seding out.



Terms of payment

Generally, we accept Irrevocable LC at sight, Advance T/T, Paypal, Escrow and West

union.If you prefer other payment terms, please let us know.
