New kolida total station KTS442RC

FOB Reference Price:Get Latest Price
US $1,000-1,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Kolida
Model Number:
KTS-442RC
Reflectorless:
300m
Single prism:
5.0km
Accuracy:
2"
Measuring method:
absolute encoding
Magnification:
30X
Compensator:
Dual axis
Compensation range:
±3'
Data communication:
RS-232C, mini USB and SD card
Internal memory:
2M/24000 points
Kolida brand:
New kolida total station KTS442RC
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
New kolida total station KTS442RC:
Size: 55cm x 35cm x 45cm
Weight:10kg
Port
Shanghai
Lead Time :
2-3 working days after payment confirmed

New kolida total station KTS442RC

Product Description

Features:

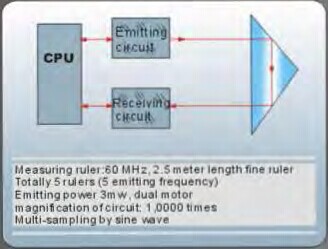

1. Circuit Diagram

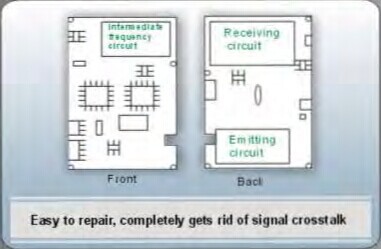

2. All in one board, World Class Technology

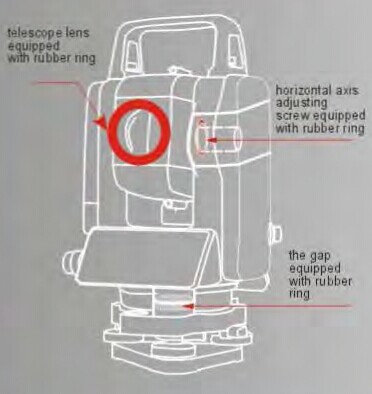

3. Rubber Circle for Water Proof

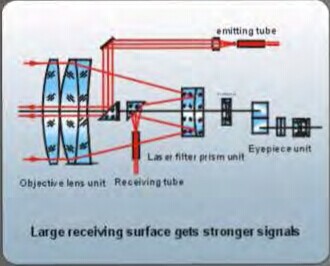

4. Laser Path Diagram

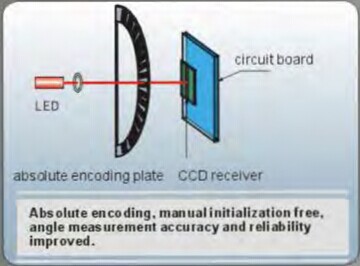

5. Angle Measurement by Absolute Encoding Disc

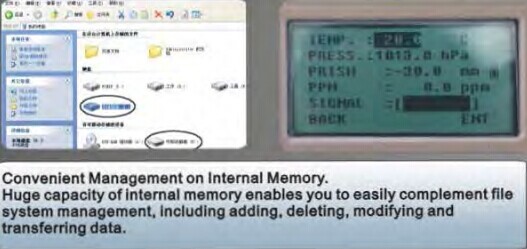

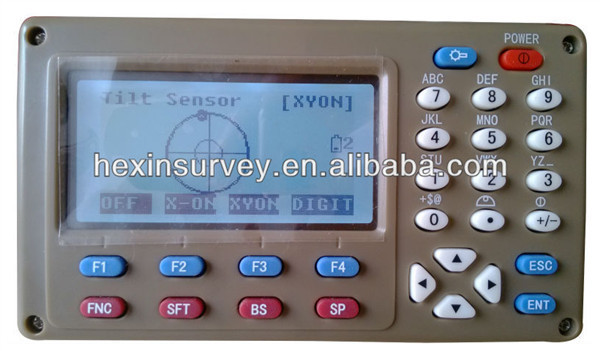

6. Six-line Display and Convenient Management

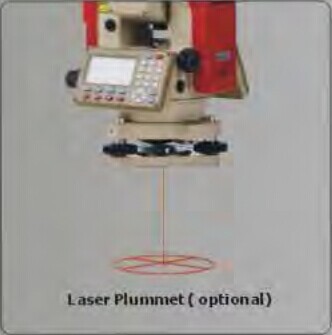

7. Laser Plummet

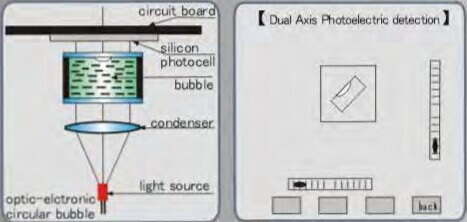

8. Dual Axis Compensator

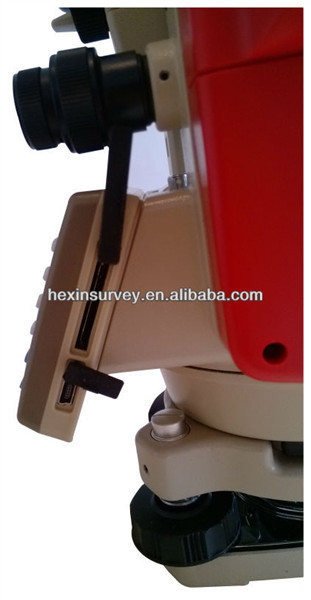

9. SD card storage and mini USB port




Specification:

KTS-442RC

Telescope:


Erect

Magnification

30×

Effective aperture

45mm

Resolving power

3

Field of view

1°30

Minimum focus

1m

Tube length

154mm

Angle Measurement

Measuring method

absolute encode

Dia of circle(vertical, horizontal)

79mm

Minimum reading

1 5Selectable

Detection method

Horizontal: Dual .Vertical: Dual

Accuracy

2

Distance Measurement: fine weather condition

Max. Range

single prism

5km

Triple prism

6km

mini prism

800m

Reflectorless

300m

Displaly

Max:99999999.9999m Min:0.1mm

Unit

m/ft

Accuracy

Reflectorless

±(5mm+2ppm·D)

with prism

±(2mm+2ppm·D)

measuring time

Fine mode:1S;Tracking mode:0.5s

Atmospheric correction

Auto correction by inputting parameter

prism constant correction

Auto correction by inputting parameter

Vial

Plate vial

30/ 2mm

Circular vial

10/2mm

Auto Vertical Compensator

Type

Dual-axis Liquid-electric Detection

Compensation range

±3

Accuracy

1

Optical Plumment


Erect

Magnification

Focusing range

0.5m~

Laser plummet

Optional

On-board Battery

type

Ni-H ,Rechargeable

Voltage

DC 6V

charging time

3hrs

Continuous operation time

10 hours

Others

Display

LCD, 6 lines

Data Communication

RS-232C, mini USB

Internal memory

2M/24000 points

External memory

SD card (up to 2GB)

Operating temperature

-20ºC~+45ºC

Dimension

L160×H330×W150mm,5.8kg
