Kolida total station KTS442R4 400m reflectorless

FOB Reference Price:Get Latest Price
US $1,000-1,500 / Sets | 1 Set/Sets (Min. Order)
Key Company Capacity
Research & Design >
  • No.of R&D Engineer: Less than 5 People
Trade Capacity >
  • Export Mode: Have Own Export License
  • Export Percentage: 81% - 90%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Kolida
Model Number:
KTS-442R4L
Reflectorless:
400m
Single prism:
5.0km
Accuracy:
2"
Measuring method:
absolute encoding
Magnification:
30X
Compensator:
Dual axis
Compensation range:
±3'
Data communication:
RS-232C, mini USB and SD card
Internal memory:
2M/24000 points
Kolida brand:
kolida total station KTS442R4
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Kolida total station KTS442R4 400m reflectorless:
Size: 55cm x 35cm x 45cm
Weight:10kg
Port
Shanghai
Lead Time :
2-3 working days after payment confirmed

  Kolida total station KTS442R4 400m reflectorless



The enhanced model of KTS-440R4. More communication function makes surveying easier.

Product Description



Large memery

Internal memory: 2M storage .able to store 24000 point. External: 2G SD card . (for the model with SD card function) No worry for short of memory space.


 Convenient data management

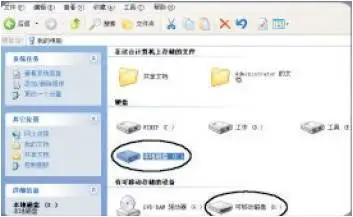

Easily operation on data adding, deleting, modifying, transferring.Total station can be recognized as a flash memory disk by computer.





Long distance measurement

With prism 5Km~10Km.Without prism 350m-400m (optimal).

Is there any target that you can not put prism on? Now use refletorless laser!





Abundant surveying programs

Various of surveying programs onboard:angle offset, angle repetition, dual-distance offset, 3-D coordinate measurement, remote Elevation, Missing line, staking-out, road design, area calculation, volume calculation and reference line.





Absolute encoding disc

Never to manually rotate EDM to do angle initialization.Don’t fear about suddenly power-off. Absolute encoding, absolute accurate.





Long time operation

Two pcs of rechargeable batteries. Battery life can support 8 hours distance measurement or 24 hours continuously angle measurement.





Specification:

KTS-442R4L

Telescope:


Erect

Magnification

30×

Effective aperture

45mm

Resolving power

3

Field of view

1°30

Minimum focus

1m

Tube length

154mm

Angle Measurement

Measuring method

absolute encode

Dia of circle(vertical, horizontal)

79mm

Minimum reading

1 5Selectable

Detection method

Horizontal: Dual .Vertical: Dual

Accuracy

2

Distance Measurement: fine weather condition

Max. Range

single prism

5km

Triple prism

6km

mini prism

800m

Reflectorless

400m

Displaly

Max:99999999.9999m Min:0.1mm

Unit

m/ft

Accuracy

Reflectorless

±(5mm+2ppm·D)

with prism

±(2mm+2ppm·D)

measuring time

Fine mode:1S;Tracking mode:0.5s

Atmospheric correction

Auto correction by inputting parameter

prism constant correction

Auto correction by inputting parameter

Vial

Plate vial

30/ 2mm

Circular vial

10/2mm

Auto Vertical Compensator

Type

Dual-axis Liquid-electric Detection

Compensation range

±3

Accuracy

1

Optical Plumment


Erect

Magnification

Focusing range

0.5m~

Laser plummet

Optional

On-board Battery

type

Ni-H ,Rechargeable

Voltage

DC 6V

charging time

3hrs

Continuous operation time

10 hours

Others

Display

LCD, 6 lines

Data Communication

RS-232C, mini USB

Internal memory

2M/24000 points

External memory

SD card (up to 2GB)

Operating temperature

-20ºC~+45ºC

Dimension

L160×H330×W150mm,5.8kg
