1000m reflectorless total station south NTS382R10 total station

FOB Reference Price:Get Latest Price
US $3,000-3,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
South
Model Number:
NTS-382R10
Reflectorless:
1000m
Single Prism:
5.0km
T&P Sensor:
T&P sensor standard included
Accuracy:
2"
Sharp screen:
3.5 inch color screen
Laser pointer:
Equipped with laser pointer
Ultrafast measurement:
Fine model:0.3s, Track model:0.1s
Storage Options:
SD card, USB pen drive and Mini-USB
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1000m reflectorless total station south NTS382R10 total station
Size: 60cm x40cmx 50cm Weight:14kg
Port
Shanghai, Tianjin, Shenzhen, Hong Kong
Lead Time :
2-3 working days after payment confirmed

1000m reflectorless total station south NTS382R10 total station

Product Description

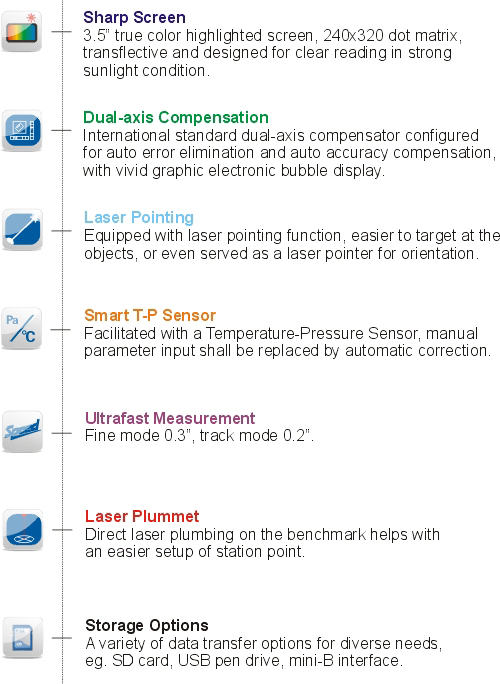

Features:

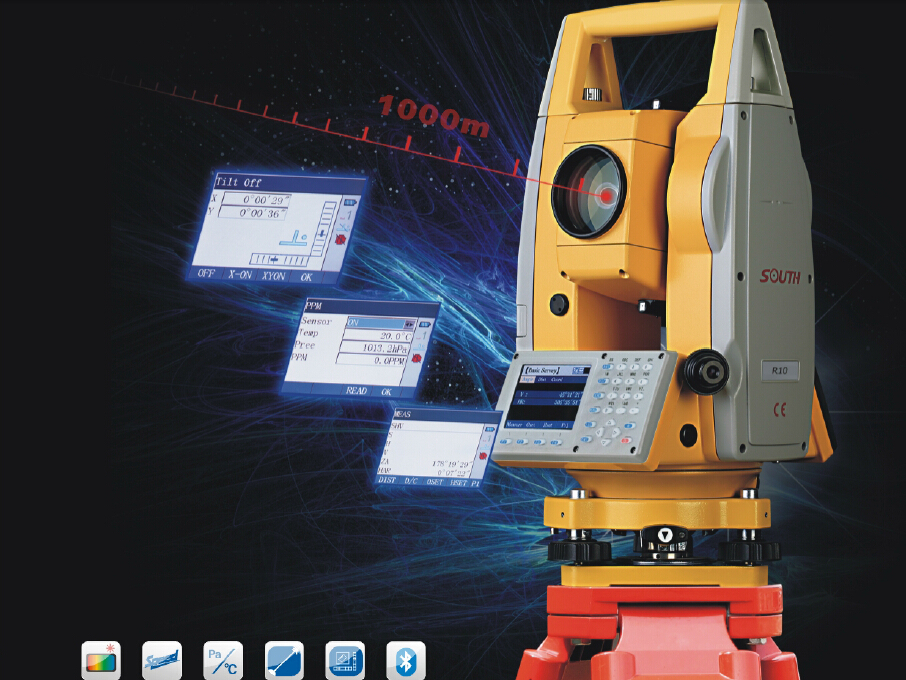

1. 1000m Reflectorless Distance Measurement

Total station NTS-382R10 is functioned by reflectorless distance measurement, range up to 1000m which is applicable for long distance measurement with high accuracy on various kinds of materials or colors such as wall,wire pole,wire, cliff, hill, earth, timber pile, etc. For those targets which arenot easy or even impossible to reach, reflectorless distance measurement can complete the measurement task easily.

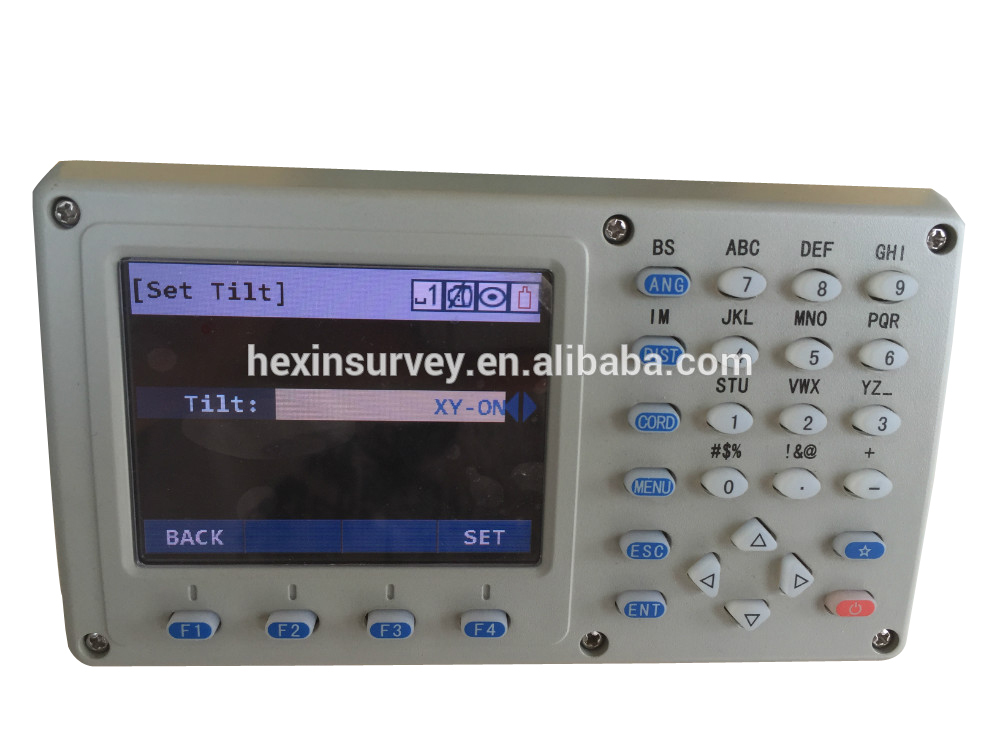

2. Dual Axis Compensation

International standard dual-axis compensator configured for auto error elimination and auto accuracy compensation, with vivid graphic electronic bubble display.

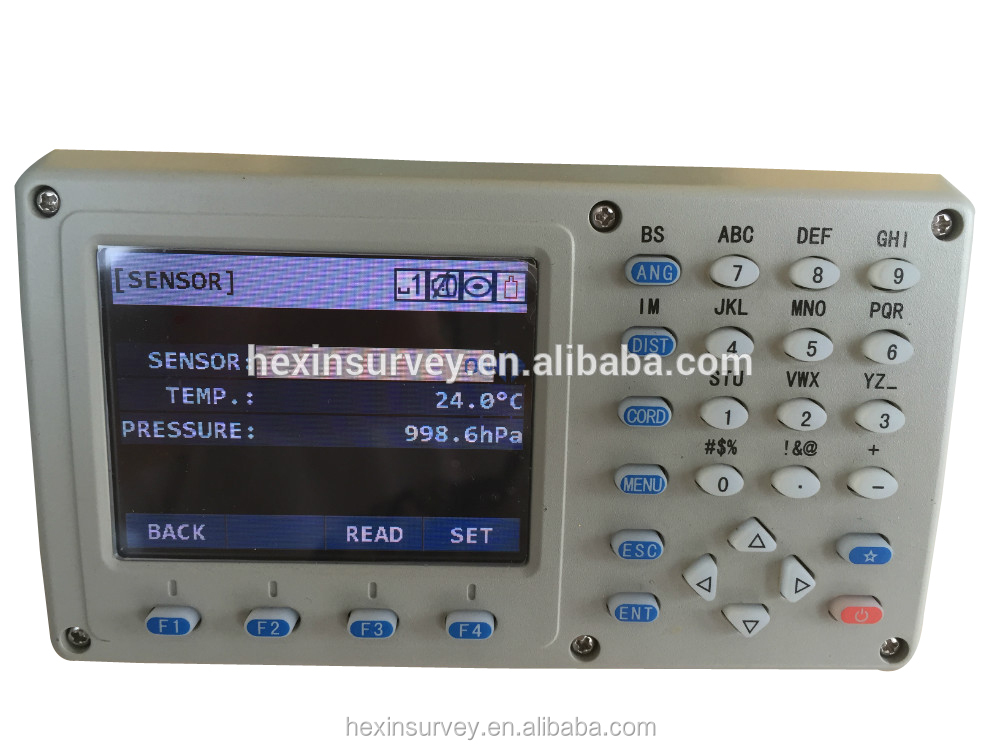

3. Smart T-P Sensor

Facilitated with a Temperature -Pressure Sensor, manual parameter input shall be replaced by a automatic correction.



4.Storage Options.

A variety of data transfer options for diverse needs, eg.SD card, USB pen drive, mini-B interface.









Specifications:

Model

South NTS382R10

Distance Measurement

Max.Range

Reflectorless

1000m

Reflector

1.0km

Single prism

5.0km

Accuracy

Reflectorless

Fine

3+2ppm

Reflector

Fine

1+1ppm

IR-sheet

1+1ppm

Reading

Max:99999999.9999 m Min:0.1 mm

Measuring Time

Reflectorless

Fine mode: <0.3s ; Tracking mode:0.1s

Atmospheric Correction

Manual input, Auto correction

Prism Constant

Manual input, Auto correction

Temperature sensor

Freecale sensor



Angle Measurement

Measuring method

Absolute continuous

Diameter of Raster Disk

79mm

Minimum reading

0.1"

Accuracy

1"/2"

Detection method

Horizontal:Dual /Vertical:Dual

Telescope


Erect

Tube length

154mm

Effective aperture

45mm,(EDM:50mm)

Magnification

30×

Field of view

1°30′

Minimum Focusing Distance

1m

Resolving Power

3″

Auto Compensator

System

Dual axis Liquid-electric

Working range

±3′

Accuracy

1″

Vial

Plate vial

30″/2mm

Circular vial

8′/2mm

Optical Plummet


Erect

Magnification

Focussing range

1m~∞

Field of view

On-Board Battery

Type

Rechargeable Ni-H battery

Voltage

DC 6v

Continuous operation time

8 hrs

Others

Temperature

-20°~+50

Dimension and Weight

200×180×350mm, 6.0kg

Plummet

Optical or laser plummet optional


Packaging & Shipping

Size: 60cm x40cmx 50cm Weight:14kg

We can use the different international express company, usually, our first choice is DHL and TNT. if you have specified requirement , pls inform us before the order.



Our Services

Our return and warranty policy:

1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week,you must contact us within 24 hour of receipt of the products .

2.For our majority products (Auto level, Theodolite, Total Station) we are offing 1 year warranty;

3.For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;

4. For big issues in one year warranty like EDM board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10 working days and send back to you.
