Hi-target V30 Gnss Receiver with Post-processing Software

FOB Reference Price:Get Latest Price
US $8,000-8,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Hi-target
Model Number:
V30
GPS:
Simultaneous L1C/A, L2C, L2E, L5
Frequency:
460 MHz with 116 channels
Galileo:
Simultaneous L1BOC, E5A, E5B, E5AltBOC
Horizontal:
2.5mm+0.5ppm RMS
Vertical:
2.5cm+1ppm RMS
SBAS:
0.50m Horizontal, 0.85m Vertical
Working range:
3-5km typical, 8-10km optimal
Static:
13-15 hours
RTK Rover (UHF/GPRS/3G):
10-12 hours
RTK Base:
8-10 hours
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Hi-target V30 Gnss Receiver with Post-processing Software
:1 set packed in 2 cartons: 50*50*60cm (25kg) 15*15*150cm(8kg)
Port
Shanghai
Lead Time :
2-3 working days after payment confirmed

Hi-target V30 Gnss Receiver with Post-processing Software

Product Description

Features:

1. Fully Automated Operation

The V30 is equipped with a smart speaker, which guides the user during operation. All its functionalities are designed to make sure jobs to be done conveniently, such as auto base set up by one button, the rover can get fix solution once it is turned on. No need to spend time setting the parameters for every single operation.



2. Multi Constellation Tracking

220 channels. The V30 is fully compatible with GNSS constellations to track GLONASS, GALILEO, BDS, SBAS as well as GPS.



3. High Power Transceiver UHF Radio

The transceiver UHF radio enables the V30's working mode to be switchable between base and rover in the same receive. In the V30 package, 2 watts Hi-target internal UHF radio and 1 watt Pacific Crest Trim Talk internal UHF radio are optional for flexible use. 2 watts transceiver UHF radio is an excellent choice for UHF RTK operation. On the other hand, 1 watt transceiver UHF radio is to be used to have the V30 work with other brand‘s receiver having Trim Talk compatible radios.



4. Seamlessly Operation in CORS System

With internal GPRS or 3G modem, the V30 works perfectly with corrections from CORS networks in any version of CMR, RTCM without needing to interpret the message but reading seamlessly.



5. Long-life Battery

Powered by 4400mAh Li-Ion battery.

Static working time 13-15 hours

RTK Rover(UHF/GPRS/3G) working time 10-12 hours

RTK Base working time 8-10 hours



6. Rugged Design, IP67

The special latching technology on flexible flat cables ensures trouble-free operation under impact or vibration. The V30 withstands 3 meters natural fall onto concrete.



7. Field Controller and Software

There are optional field controller and software in the V30 package. The controllers with OS Microsoft Windows Mobile 6.5 are fully compatible with third party software such as Carlson SurvCE, Micro Survey Field Genius, Digiterra Explorer, Esri Arc Pad etc. besides standard field & GIS software made by Hi-target. Hi-target controller with Wifi, Bluetooth, and GPRS/3G is completely wireless to connect to any device, collect data and connect to server simultaneously and seamlessly.



8. Post-processing Software

Hi-target Geomatics Office (HGO) software provides total GNSS solution with a complete suite of programs to support Hi-target GNSS receivers. Standard Rinex data and Hi-target raw data can be processed flexibly and easily.



Specification:

Model

V30

Satellite Signals Tracked Simultaneously

GPS

Simultaneous L1C/A, L2C, L2E, L5

GLONASS

Simultaneous L1C/A, L1P, L2C/A
(GLONASS M only), L2P

SBAS

Simultaneous L1C/A, L5

Galileo

Simultaneous L1BOC, E5A, E5B, E5AltBOC

BDS/Compass (optional)

B1, B2

QZSS

L1C/A, L1 SAIF, L2C, L5

Static and Fast Static GNSS Surveying

Horizontal

2.5mm+0.5ppm RMS

Vertical

5mm+0.5ppm RMS

Post Processing Kinematic (PPK / Stop & GO) GNSS Surveying

Horizontal

1cm+1ppm RMS

Vertical

2.5cm+1ppm RMS

Initialization time

typically 10 minutes for base while 5 minutes for rover

Initialization reliability

typically > 99.9%

Realtime Kinematic (RTK) Surveying

Horizontal

8mm+1ppm RMS

Vertical

15mm+1ppm RMS

Initialization time

typically < 8 seconds

Initialization reliability

typically > 99.9%

Code Differential GNSS Positioning

Horizontal

25cm+1ppm RMS

Vertical

50cm+1ppm RMS

SBAS

0.50m Horizontal, 0.85m Vertical

Physical

Dimensions (W * H)

19.50cm * 10.40cm (7.68 in * 4.09 in)

Weight

1.3kg (2.86lb) with internal battery,
internal radio, standard UHF antenna

Operating temperature

-45 to +65 (-49ºF to +149ºF)

Storage temperature

-55 to +85 (-67ºF to +185ºF)

Humidity

100%, considering

Water/Dust Proof

IP67 dustproof, protected from temporary
immersion to depth of 1m (3.28ft.)

Shock and Vibration

Designed to survive a 3m (9.84ft.)
nature fall onto concrete

Internal Battery Life

Static

13-15 hours

RTK Rover (UHF/GPRS/3G)

10-12 hours

RTK Base

8-10 hours

Hi-target Internal UHF Radio (standard)

Frequency

460 MHz with 116 channels

Transmitting power

0.1W, 1W, 2W adjustable

Transmitting speed

up to 19.2Kbps

Working range

3-5km typical, 8-10km optimal

Pacific Crest ADL Foundation Internal UHF Radio

Frequency

390-430 MHz or 430-470 MHz

Transmitting power

0.1W, 0.5W, 1W adjustable

Transmitting speed

up to 19.2Kbps support most of
radio communication protocol

Working range

3-5km typical, 8-10km optimal

Hi-target External UHF Radio (standard)

Frequency

460 MHz with 116 channels

Transmitting power

5W, 10W, 20W, 30W adjustable

Transmitting speed

up to 19.2Kbps

Working range

8-10km typical, 15-20km optimal

Pacific Crest ADL Vantage Pro External UHF Radio

Frequency

390-430 MHz or 430-470 MHz

Transmitting power

4W to 35W adjustable

Transmitting speed

up to 19.2Kbps support most of
radio communication protocol

Working range

8-10km typical, 15-20km optimal

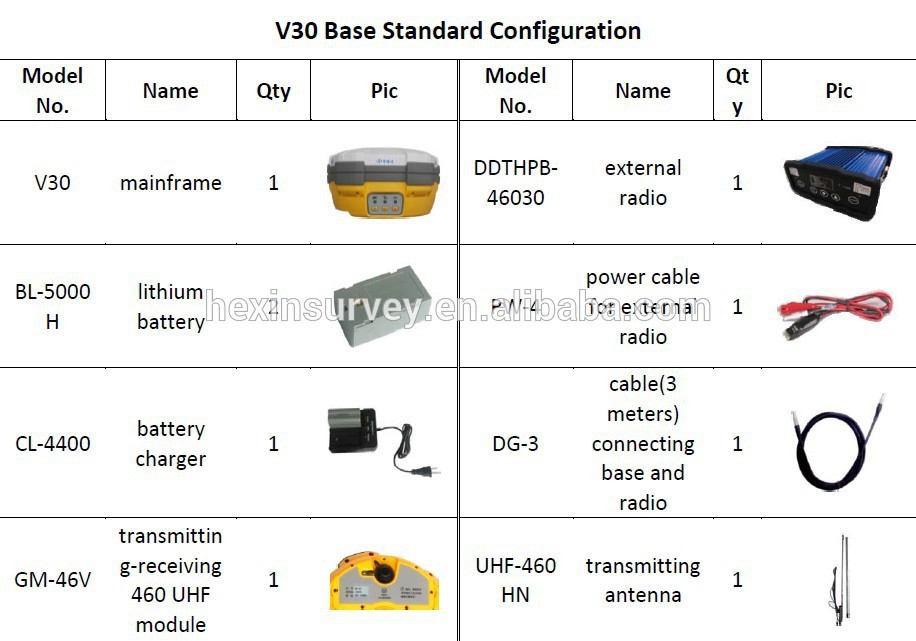

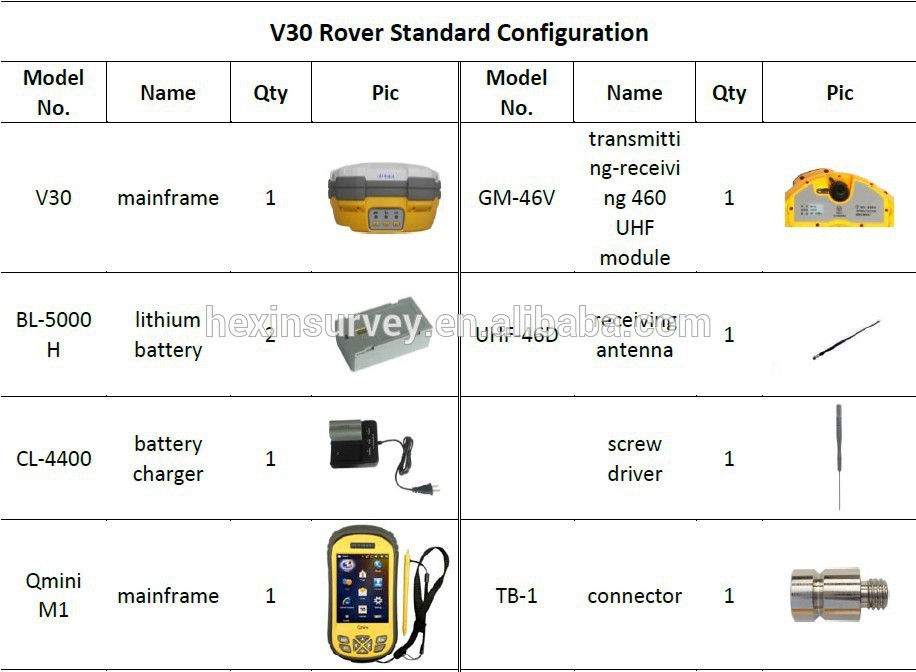

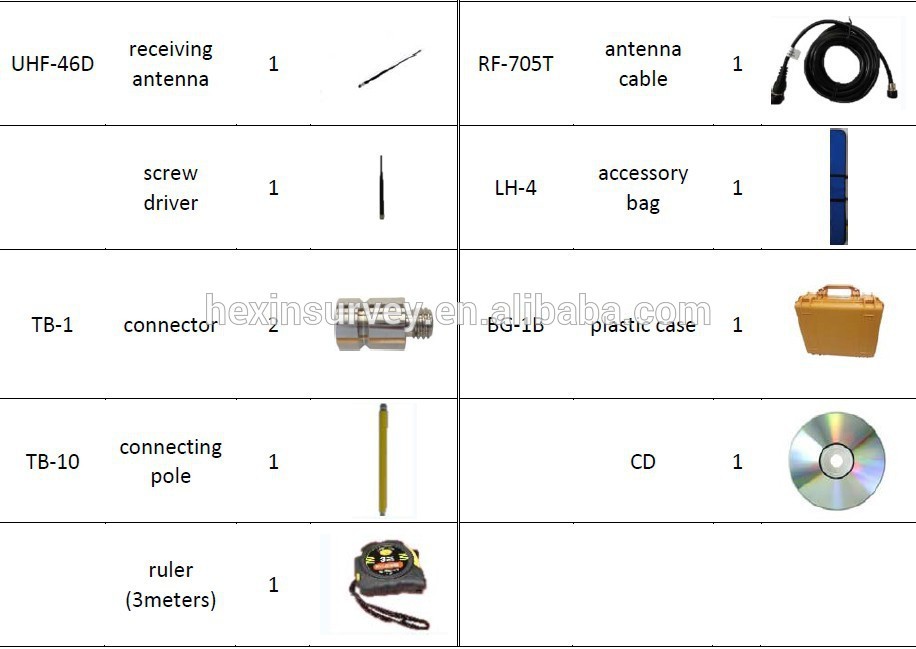

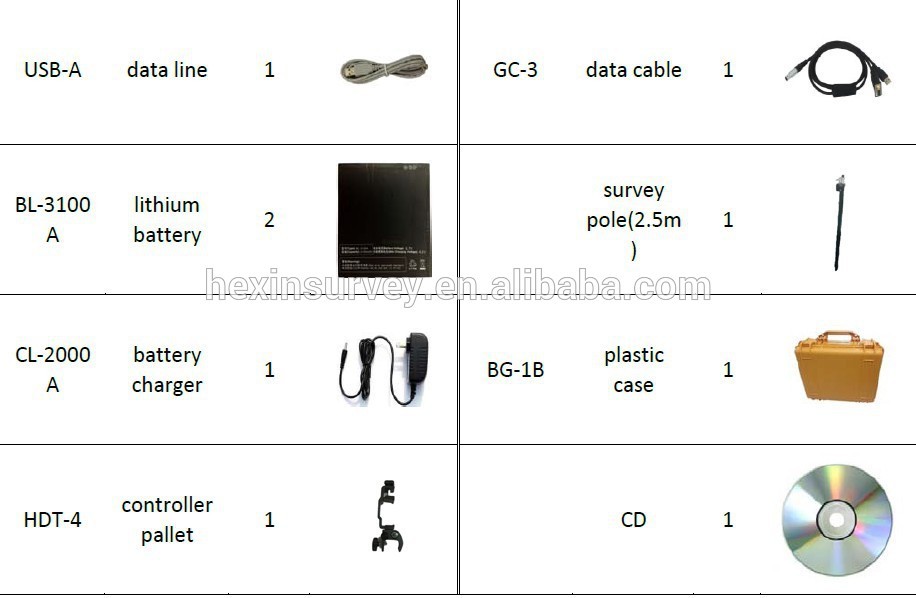

Related Pictures:

Product Show

Packaging & Shipping

1 set packed in 2 cartons: 50*50*60cm (25kg) 15*15*150cm(8kg)

We can use the different international express company, usually, our first choice is DHL. if you have specified requirement , pls inform us before the order.
