Pentax ETH-510 Theodolite Price with Angle Unit 360

FOB Reference Price:Get Latest Price
US $1,400-1,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
Pentax
Model Number:
ETH-510
Imaging:
Erect image
Magnification:
30 x
Angle measuring mode:
Absolute encoder
Angle measuring accuracy:
10"
Angle display:
5"/10"
Angle unit:
360°/400G
Shortest focusing distance:
1.35 m
Compensation range:
± 3'
Display unit:
Two-sided
Sensitivity of tubular vial:
40"/2 mm
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Pentax ETH-510 Theodolite Price with Angle Unit 360
Size: 50cm x 25cm x 40cm Weight: 8kg
Port
Shanghai
Lead Time :
2-3 working days after payment confirmed

Pentax ETH-510 Theodolite Price with Angle Unit 360

Product Description

Features:

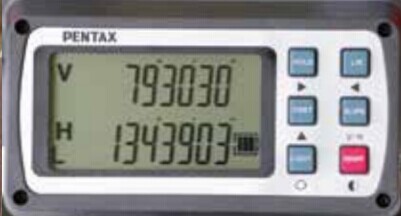

1. EASY TO READ-DISPLAY


A large display (LCD) is incorporated on both sides of the instrument. Both vertical and horizontal angles are displayed in degrees or gon.



2. EASY KEY OPERATION

A row of soft keys allows simple and fast operation.



3. EASY TO USE

a. Lightweight and compact
b. The basic instrument weighs only 4.5 kg



4. AUTOMATIC POWER-OFF FUNCTION

Automatic power-off prevents unnecessary battery drainage. The remaining battery capacity is indicated on the display.



5. ANGLE MEASUREMENT AND ANGLE CONTROL

a. Clockwise and counter-clockwise angle measurement
b. Conversion of the vertical angle to a percentage grade
c. Zero setting of the horizontal angle at any position
d. Horizontal angle ‘Hold key function



Specifications:

Model

ETH-510

Telescope

Imaging

Erect image

Objective aperture

45 mm

Magnification

30 x

Resolution

≤3”

Field of view

1° 20’

Shortest focusing distance

1.35 m

Stadia multiplication constant

100

Stadia addition constant

0

Angle measurement

Angle measuring mode

Absolute encoder

Angle measuring accuracy

10”

Angle display

5”/10”

Angle unit

360°/400G

Compensator

Tilt sensor

 Automatic vertical compensation

Tilt compensator

No

Soft switch

/

Compensation range

± 3’

Display unit

Two-sided

Optical plummet


Erect

Magnification

3 x

Angle of vision

Focusing range

0.5 m ~ ∞

Sensitivity of tubular vial

40”/2 mm

Sensitivity of circular vial

8’/2 mm

Dust & Water Protection

IP44

Type of base

Detachable

Power supply

Battery

 4 x single three (AAA) type dry battery

Ambient temperature

For operation

-20°C - +50°C

Weight

Instrument

4.5 kg

Carrying case

1.9 kg

Measurements

Instrument

 W 175 mm x L 170 mm x H 334 mm

Carrying case

W 330 mm x L 450 mm x H 220 mm



Application:

1. Setting out right angles and checking plumb

2. Alignment measurements
3. Anchor bolt layout
4. 90° layout

Product Show


Packaging & Shipping

Size: 50cm x 25cm x 40cm Weight: 8kg

We can use the different international express company, usually, our first choice is DHL. if you have specified requirement , pls inform us before the order.

2014 china best reflectorless total station with bluetooth

Our Services

Our return and warranty policy:

1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week,you must contact us within 24 hour of receipt of the products and the customer should be responsible for all the charges of return and reshipping;

2.For our majority products (Auto level, Theodolite, Total Station) we are offing 1 year warranty;

3.For small issues like missing or damaged part, key board, please send us the photos, we will send the required part and related instructions to you for free;

4. For big issues in one year warranty like EDX board, main board issue. We could only ask you to send the instrument back to us. Normally we will have it fixed in 10 working days and send back to you. You and we shall take care of the corresponding shipping cost on each side. For big issues out of one year warranty, the customer should be responsible for all the cost.

Feedback:

will be high appreciated after receive the items.

Since your feedback are very important for our business development.
