Specifications
1.RED-tech technology Reflectorless EDM 500m
2.Advanced Security and Maintenance with TSshieldTM
3.Dual-axis compensator
Estacion total Sokkia estacion total topcon
TSshield

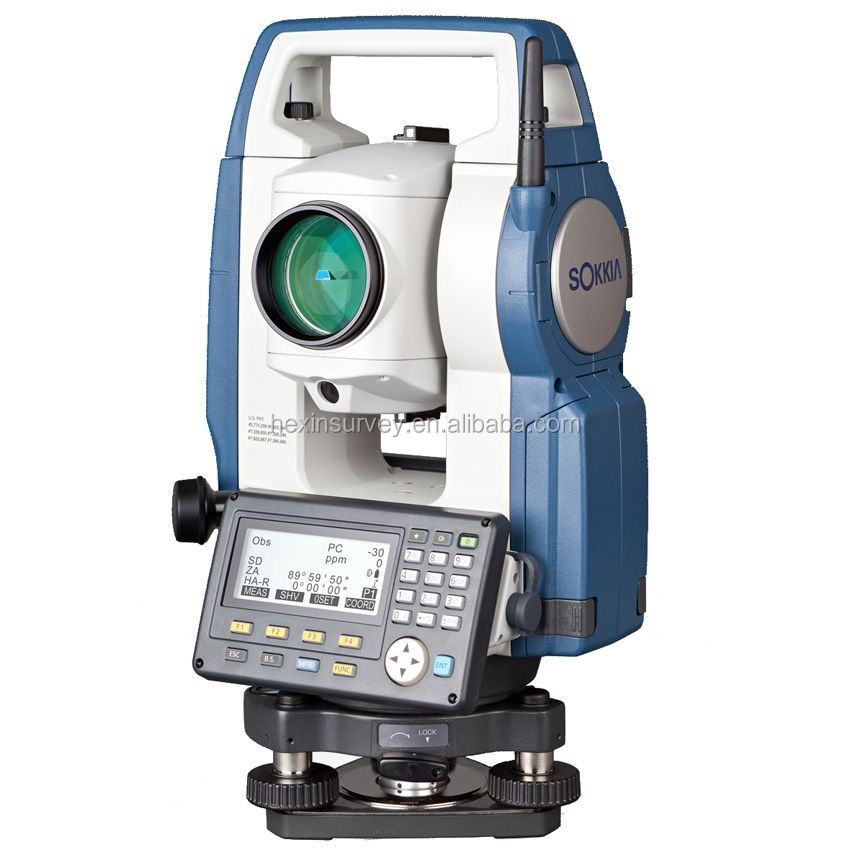

Every CX total station is equipped with a telematics-based multifunction communications module providing the ultimate security and maintenance capabilities for your investment.
If an activated instrument is lost or stolen, you can send a coded signal to the instrument and disable it – Your total station is secure anywhere in the world!
And, in the same module, you have daily connectivity to cloudbased Sokkia servers that can inform you of available software updates and firmware enhancements
RED-tech Technology Reflectorless EDM
Long-Range Bluetooth® Technology*
Advanced Angle Measurement System
The Longest Battery Life -36 Hours!
Waterproof, Rugged, and Operator Friendly
| Model | CX-101 | CX-102 | CX-103 | CX-105 | CX-107 |
| Telescope | |||||
| Magnification / Resolving power | 30x / 2.5" | 30x / 3.5" | |||
| Others | Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM),Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels | ||||
| Angle measurement | |||||
| Display Resolution | 0.5" / 1" (0.0001 / 0.0002gon, 0.002 / 0.005mil) | 1" / 5" (0.0002 / 0.001gon, 0.005 / 0.02mil) | |||
| Accuracy (ISO 17123-3:2001) | 1" | 2" | 3" | 5" | 7" |
| IACS (Independent Angle Calibration System) | Provided | - | |||
| Dual-axis compensator / Collimation compensation | Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available | ||||
| Distance measurement | |||||
| Laser output *1 | Reflectorless mode: Class 3R / Prism / sheet mode: Class 1 | ||||
| Measuring range (under average conditions*2) | |||||
| Reflectorless*3 | 0.3 to 500m(1.0 to 1,640ft.) | ||||
| Reflective sheet*4/*5 | RS90N-K: 1.3 to 500m (4.3 to 1,640ft.) , RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.) | ||||
| Mini prisms | CP01: 1.3 to 2,500m (8,200ft.), OR1PA: 1.3 to 500m (1,640ft.) | ||||
| One AP prism | 1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.) | ||||
| Three AP prisms | to 5,000m (16,400ft.) / Under good conditions*6: to 6,000m (19,680ft.) | ||||
| Display resolution | Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in. | ||||
| Accuracy (ISO 17123-4:2001) (D=measuring distance in mm) | |||||
| Reflectorless | (3 + 2ppm x D) mm*7 | ||||
| Reflective sheet | (3 + 2ppm x D) mm | ||||
| AP/CP prism | (2 + 2ppm x D) mm | ||||
| Measuring time*7 | Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s) | ||||
| Interface and Data management | |||||
| Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight | ||||
| Control panel location*8 | On both faces | On one face | |||
| Trigger key | On right instrument support | ||||
| Data storage | |||||
| Internal memory | Approx. 10,000 points | ||||
| Plug-in memory device | USB flash memory (max. 8GB) | ||||
| Interface | Serial RS-232C, USB2.0 (Type A, for USB flash memory) | ||||
| Bluetooth modem (factory option)*9 | Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 300m (980ft.)*10 | ||||
| General | |||||
| Laser-pointer*11 | Coaxial red laser using EDM beam | ||||
| Guide light*11 | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)*2 | ||||
| Levels | |||||
| Graphic | 6’ (inner circle) | ||||
| Circular level | 10' / 2mm | ||||
| Optical plummet | Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom | ||||
| Laser plummet (option) | Red laser diode (635nm±10nm), Beam accuracy: ≤1.0mm*1.3m, Class 2 laser product | ||||
| Dust and water protection | IP66 (IEC 60529:2001) | ||||
| Operating temperature*12 | -20 to +50ºC (-4 to +122ºF)*2 | ||||
| Size with handle*8 | Contorol panel on both faces: W191 x D181 x H348mm (W7.5 x D7.1 x H13.7in.) Control panel on one face: W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.) | ||||
| Weight with handle and battery | Approx. 5.6kg (12.3 lb.) | ||||
| Power supply | |||||
| Battery | |||||
| BDC70 detachable battery | Li-ion rechargeable battery | ||||
| Operating time (20ºC) | |||||
| BDC70 | Approx. 36 hours (single distance measurement every 30 seconds) | ||||
| External battery (option) | BDC60: approx. 44 hours, BDC61: approx. 89 hours (single distance measurement every 30 seconds) | ||||
