FOIF EL302A high precision digital level

FOB Reference Price:Get Latest Price
US $1,000-1,200 / Pieces | 1 Piece/Pieces (Min. Order)
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
FOIF
Model Number:
EL302A
FOIF brand:
high precision digital leve
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 piece packed in 2 cartons:
Digital level machine: 50*35*35cm (7kg)
2 pcs barcode staff: 215*15*15cm (6kg)
Port
Shanghai
Lead Time :
Within 2 working days after payment

Specifications

1.LCD display with illumination
2.Alphanumeric keyboard 24keys .
3.Internal memory 3000 points with SD card for Data storage.

FOIF EL302A high precision digital level

Application:

    EL302A digital level is designed with new coding technology, which can maximize work efficiency and minimize human error, providing consistent measurement precision and speed, regardless of operator skill; Also auto  compensator is adopted for high measuring accuracy and working efficiency. Model EL302A Digital Level is adoptable for the Second or Third-order geodetic leveling of national networks; It can be used for engineering and deformation surveys, such as height control for engineering projects, deformation and subsidence measurements, checking bridges and structures, monitoring movements, etc. It is also used for general construction engineering and installation of large size machines.

Nomenclature:

Features:

  • Easy one-touch operation, simply push the red button
  • Quick height and distance result - the reading is displayed almost instantly
  • Reliable and error-free reading, even in dim light conditions
  • Quicker and easier than an optical level
  • Standard deviation of 1km double run: ≤±0.6mm(Electronic reading with Invar staff)
  • Far measuring range (electronic reading): 2-105m.
  • On board program, height difference measurement between backsight and foresight
  • Internal memory for data storage, support SD card
Technical Data:

Accuracy

Standard deviation of  km double run

Electronic measurement

invar staff

+/-0.6mm*

standard staff

+/-1.0mm*

Optical measurement

+/- l.5mm*

Electronic measurement

Time for single measurement

≤2s

Range

2-105m

Measurement modes

Singel, average, tracking

Display resolution(m/in selectable)

Height

0.1mm/0.0001ft

Distance

1mm/0.001ft

Telescope

Clear objective aperature

45mm

Magnification

30x

Field of view at 100m

2.3m

Shortest focus distance

1.0m

Automatic compensator

Working range

14'

Setting accuracy

+/-0.5"

Power

Battery

2000mAh Ni-MH rechargeable

Continuous operating time

12 hours

Measurement programs

On-board programs

BF, BFFB, BFBF, BBFF, FBBF,
 Stake out, intermediate

Onboard adjustment

Yes

Others

Memory

3000 points, support SD card

Display

LCD, 7lines*32characters

Keyboard

Alphanumeric keyboard

Interface

USB, RS232 optional

Sensitivity of circular level

8'/2mm

Water and dusp protection

IP54

Operating temperature

   -20°C~50°C

Net weight

3kg

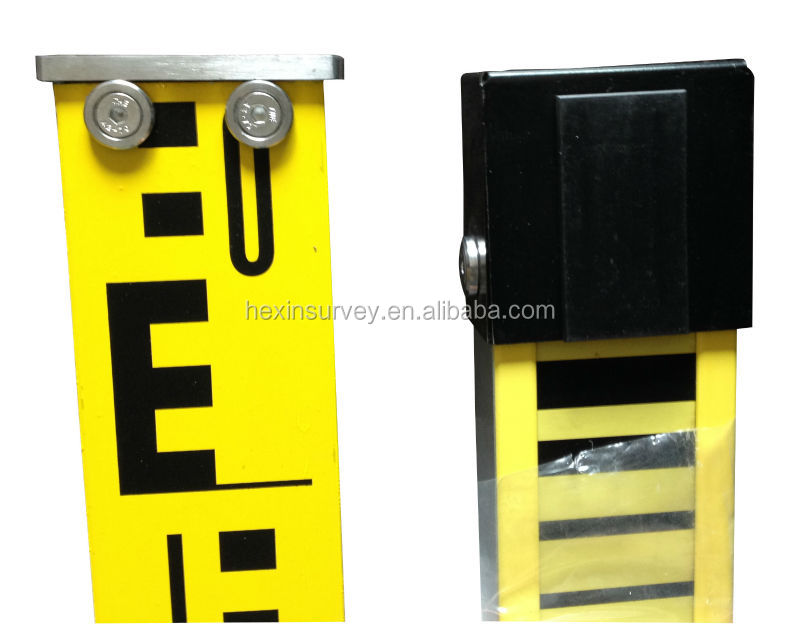

Standard accessory include 2 pcs 2m fiberglass barcode staff:

Payment:

1.We accept T/T, Paypal and West union. The best way is directly online payment by Escrow,you can choose yourself. if you want other payment terms, pls let us know before the order.

2. If online payment, full payment must make within 7 days after you place your order, or the order will be invalid or canceled by the system.

3.Make sure that you have completed all the detail information like contact person, address, zip code, telephone No when fill in the buyer's information.

Shipment:

Note:DHL/UPS/Fedex/TNT Express usually take about 3-5 working days to the destination. While about 10-15 days by EMS.

1.We will send the goods within 2-3 working days after payment have been confirmed.

2.The buyer should be responsible for the taxes or duty charged by their country.

   And the goods will be marked as "gifts" or "sample" for your easy custom clearance

  and less charge

Return and warranty:

1.All products have one year warranty, if there is no man-made problems,we will replace or repair for you freely.

2.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week,and you must contact us within 24 hour of receipt of the products.

Feedback:

will be high appreciated after receive the items.

Since your feedback are very important four our business development.

Contact us:

Skype:jeffsongsursup

Yahoo messenger: jeffsonghexinsurvey

Trade manager:hexinsurvey

Tel:0086-21-61458318

Mobile:0086-13701633423
