FOIF total station RTS652

FOB Reference Price:Get Latest Price
US $1,000-1,500 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
FOIF
Model Number:
RTS652
Single prism:
3000m
Communication:
USB/RS232C/Bluetooth(optional)
Compensator:
single-axis liquid tilt sensor
Angle measurement:
Absolute encode
Plummet:
Laser plummet
Keyboard:
2 sides Alphanumeric backlit crystal keyboard
Display:
Backlight display
FOIF total station:
RTS652
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery

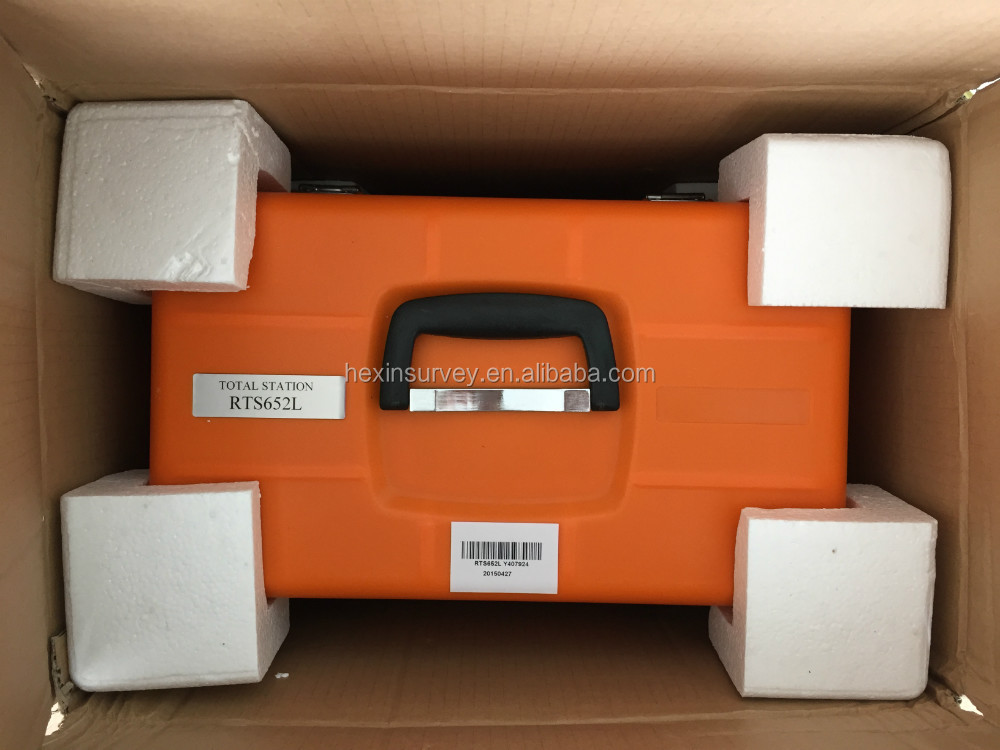

Packaging Details
FOIF total station RTS652:
Carton Size:60cm x 50cm x 42cm
Weight:13kg
Port
Shanghai
Lead Time :
2-3 working days after payment confirmed

  FOIF total station RTS652





Company Information

FOIF brand introduction:

    The origins of FOIF (Suzhou FOIF Co., Ltd.) date back nearly 50 years, with the founding of Suzhou First Optical Instrument Factory in 1958. With more than 500 employees, FOIF integrated of R&D, manufacturing, sales, logistics and after-sales services of surveying instruments. FOIF now is the leading manufacturer in China. We will focus attention on the needs of construction industries and surveying markets.



FOIF is high-tech enterprise awarded a Grade AAA certificate from the Chinese government in the Jiangsu province for honoring contracts and keeping promises. FOIF’s quality management system attained ISO9001:1994 Certification of DNV (Det Norske Veritas) in 1996, and attained ISO9001:2000 Certification in 2002.









Product Description

FOIF RTS652 total station:

  •  Bluetooth cable-free connection (Factory optional)
  • 128M internal memory, 120000 points and 40 jobs can be saved
  •  Could be operated with data collector, FOIF FieldGenius or the third part software are  available
  •  IP66 environmental protection
  •  Alphnumerical keyboard



Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately. The azimuth information won’t be missed even the total station is power-off unexpectedly.



Data Storage

128M internal memory, 120000 points and 40 jobs can be saved



Backlight

The display and keyboard with backlight for working in the dark.

Data Transfer Software

FOIF Geomatics office

FOIF

RTS652

Telescope

Length

156mm


Erect

Objective aperture

45mm

Magnification

30*

Field of view

1"30'

Shortest focus distance

1.0m

Angle measurement

Reading system

Absolute encoder

Angle unit

360"/400gon/6400mail.selectable

Display resolution

1"/5"/10"(or0.2mgon/1mgon/2mgon)

Accuracy

2"

Distance measurement

Single prism

3000m

Accuracy

1.5mm+2ppm

Measurement time

Initial:2.5s

Prism

1.0-1.5s

Display resolution (m/inch selectable )

0.2mm/1mm

Temperature Input range

 -40°C to +60°C

Press input range

500hpa to 1500hpa

Prism constant correction

 -99.9mm to +99.9mm

Compensator

Range

±3'

Level vial sensitivity

Plate level vial

30"/2mm

Circular level vial

8"/2mm

Optical plummet(factory optional)

Accuracy

±0.8mm/1.5m


Erect

Magnification

3x

Field of view

4"

Focus range

0.5 to ∞

Laser plummet(standard)

Accuracy

±0.8mm/1.5m

Laser class

Class2/IEC60825-1

Laser spot size/brightness

Adjustable

Laser wave length

635nm

Focus range

0.5 to ∞

Power

Battery

3400mAh Li-ion rechargeable

Output voltage

7.4V DC

Continuous Operation time

12 hours (At +20°C)

Charger

FDJ6-LI(110v / 240v)

Charging time(at+20°C)

Approx.4 hours

Application programs

Topography/Data collection/stake out/resection/rem/mlm

AREA/OFF set/point projection

Others

Display

LCD,4Linesx16characters(64x128dots)

CPU

32 Bit

Memory

128M internal memory, 120000 points and 40 jobs can be saved

Keyboard

Alphanumeric keyboard.both sides

Weight(including battery)

5.1KG

Dimensions

175*178*340MM

Operating temperature

 -20°C to +50°C

Storage temperature

 -40°C to +70°C

Interface

USB/RS-232C/Bluetooth(optional)

Water and dust proof

IP66

Data transfer software

FOIF Geomatics Office

Office processing software

FOIF Geomatics CAD(Optional)

Data collector

PS236, fully rugged PDA(Optional)
