South total station optical instrument

FOB Reference Price:Get Latest Price
US $1,500-2,500 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
South
Model Number:
NTS-362R
Data port:
SD card, USB, RS232
Compensator:
Dual axis Liquid-electric compensator
Display:
Six-line, Large LCD display
Distance measurement:
Visible laser total station
Measurement time:
Fine:1s, tracking:0.5s
Angle measurement:
Absolute encoding disc
1 prism:
50,000 m
Reflectorless:
350m
Angle accuracy:
2"/5" optional
South brand:
optical instrument
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
South total station optical instrument:
Size: 60cm x 40cm x 50cm
Weight:12kg
Port
Shanghai
Lead Time :
3 working days

Specifications

1.Reflectorless 350m
2.SD card and USB interface
3.Six line large LCD
4.Road design program

        South total station optical instrument



Product Description

  Features:

1. Reflectorless Distance Measurement

     Total station NTS-360R series is functioned by reflectorless distance measurement, range up to 350m which is applicable for long distance measurement with high accuracy on various kinds of materials or colors such as wall, wire pole, wire, cliff, hill,earth, timber pile, etc. For those targets which are not easy or even impossible to reach, reflectorless distance measurement can complete the measurement task easily.

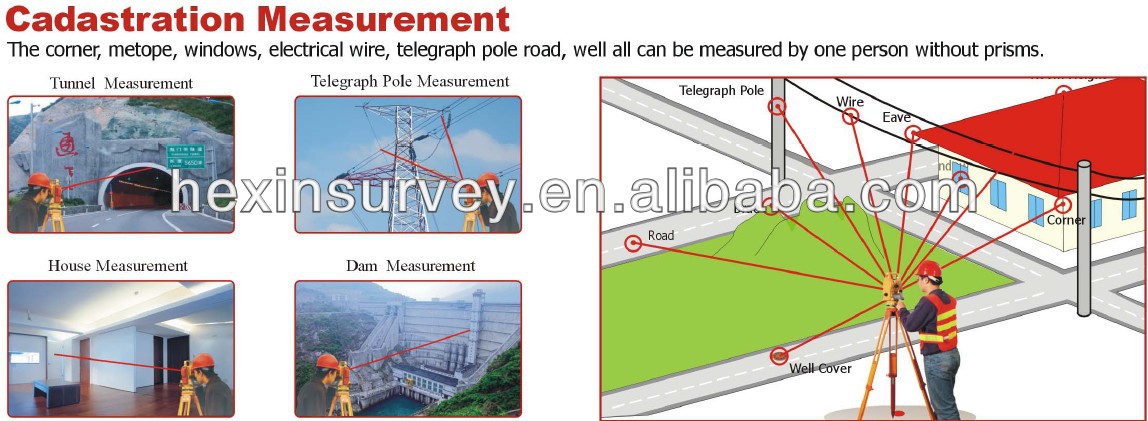

Cadastration measurement.jpg

2. Excellent Functionality (Include road design measurement)

     SOUTH total station NTS-S360R is embedded with various outstanding
surveying programs, coupled with functions of data storing and parameter
setting, which can be widely applied in various kinds of professional and
construction survey.

3.Angle measurement by absolute encoding disc

     Absolute encoding, manual initialization free, angle measurement accuracy and reliability improved.

4. Six-line large LCD


5. Convenient Management on Internal Memory

      Huge capacity of internal memory enables you to easily complement file system
management, including adding, deleting, modifying and transferring data.



6. Dual Axis Compensation




7. SD card Function and USB interface


    SD card provides huge memory, fast speed of data transferring, incredibly
flexibility and reliable safety. Saving various data of job into the SD card,
you can easily read it just by inserting it into the SD port of your laptop.
      USB interface is the international mainstream for PC communication,
with it your job must be much easier



8. Water and Dust Proof:IP65

      Rubber circle in most positions, proof against water/dust/damp, IP65 class.

9. Different main board

      Using different main board for angle measurement and distance measurement,
more simple and  reasonable structure,easy maintaining.



Distance Measurement (20km visible normal condition)

Max.Range

Reflectorless

350m

Single prism

5.0km

Accuracy

Reflectorless

Fine

5+2ppm

Tracking

10+2ppm

Reflector

Fine

2+2ppm

Tracking

5+2ppm

IR-sheet

5+2ppm

Reading

Max:99999999.9999 m Min:0.1 mm

Measuring Time

Reflectorless

Fine mode: <1.2s ; Tracking mode:0.5s

Reflector

Fine mode: <1.2s ; Tracking mode:<0.5s IR sheet mode:<1.2s

Atmospheric Correction

Manual input, Auto correction

ANGLE MEASUREMENT

Measuring method

Absolute continuous

Diameter of Raster Disk

79mm

Minimum reading

1″/ 5″Selectable

Accuracy

2"

5"

Detection method

Horizontal:Dual /Vertical:Dual

TELESCOPE


Erect

Tube length

154mm

Effective aperture

45mm,(EDM:50mm)

Magnification

30×

Field of view

1°30′

Minimum Focusing Distance

1m

Resolving Power

3″

AUTO COMPENSATOR

System

Dual axis Liquid-electric

Working range

±3′

Accuracy

1″

VIAL

Plate vial

30″/2mm

Circular vial

8′/2mm

OPTICAL PLUMMET


Erect

Magnification

Focussing range

0.5m~∞

Field of view

ON-BOARD BATTERY

Type

Rechargeable Ni-H battery

Voltage

DC 6v

Continuous operation time

8 hrs

OTHERS

Water Proof

IP 66

Display

LCD,6 lines,digital

Data Communication

RS-232C, USB , SD

Temperature

-20°~+50°C

Dimension and Weight

160×150×330mm, 5.2kg



IMG_20140314_124740.jpgIMG_20140314_124757.jpgIMG_20140314_124813.jpgIMG_20140314_124835.jpgIMG_20140314_125016.jpg




 south brand total station (7).jpg




Packaging & Shipping

1 piece packed in 1 hard plastic carton, then packed in the paper carton

Carton size:(60*40*50cm 12kg)

We can use the different international express company, usually, our first choice is DHL. if you have specified requirement , pls inform us before the order.





FAQ

Payment:

We accept payment by TT,Paypal, West union,and Escrow.

If you'd like other payment method, Pls let us know before the order

Laser cross line  level.jpg

Delivery:

1.Usually, we will send out the products within 3-5 working days after the payment confirmed

2.Before shipment, pls supply the following information to us :

Contact person or company name

Detail address

Telephone No

Zip code

3.The buyer are responsible for the tax and/or duty charged by their country.

Return and warranty:

1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week,and you must contact us within 24 hour of receipt of the products.

2.The shipping charges are not refundable and the customer should be responsible for all the charges of return and reshipping.

Feedback:

Customer's feedback will be high appreciated after receive the items.

Since your feedback are very important four our business development.


Company Information

    With more than 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in Mainland China. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
