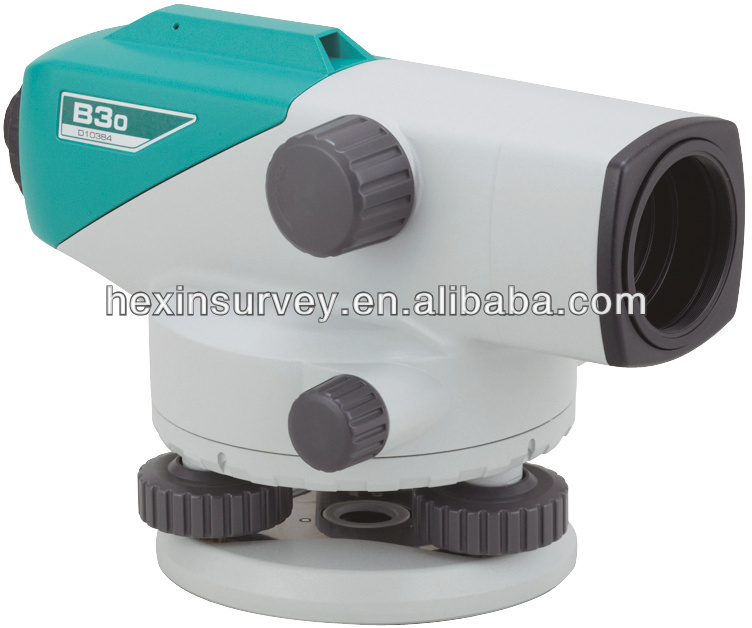

Automatic level sokkia auto level instrument

FOB Reference Price:Get Latest Price
US $200-250 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
Sokkia
Model Number:
B30
Accuracy:
1.5mm
Magnification:
28X
Compensaor:
magnetic damping system
Sokkia brand:
auto level instrument
Object operture:
36mm
Minium focus:
0.2m
Water resistance:
IPX6
Horizontal circle diameter:
103mm
Operating temperature:
-20 to +50 degree
Supply Ability
Supply Ability:
200 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Automatic level sokkia auto level instrument :
1 piece packed in 1 inner carton (35*25*25cm; 3kg ):
4 piece packed in 1 outer carton (70*45*25cm; 12kg).
Port
Shanghai
Lead Time :
2-3 working days after payment confirmed

Specifications

1.Automatic level sokkia auto level instrument
2.Magnetic compensator system.
3.Best quality in the world.

   Automatic level sokkia auto level instrument



Product Description

World-Proven Precision and Durability

       Sokkia B series automatic levels feature enhanced reliability under all environmental conditions. Tough and compact bodies are more tightly sealed against water, humidity and dust (IPx6). The B series levels provide quick setup, easy sighting, and superior durability against vibration and shock, ensuring the increased productivity over an extra-long period of time.



Features:

1.Precise,Reliable Automatic compensator

2.Quick collimation

       Two knobs of endless horizontal motion drives can be operated with either hand for fast and easy aiming.



3.Horizontal Angle Measurement.



4.Stadia



Specification:

Model

B40

   B30

            B20

Telescope

Length

215mm(8.46 inch)

Objective aperture

32mm

36mm

42mm

Magnification

24X

28X

32X


Erect

Resolving power

4"

3.5"

3.0"

Field of view(at 100m)

1° 25′ (2.5m)

1° 20′ (2.3m)

Minimum focussing distance

0.2m (7.9in.) from end of telescope
  0.3m (1ft.) from instrument cener.

Reticle pattern

Cross hairs

wedge

Stadia ratio

100

Stadia constant

0

sighting aid

Gun sight

Peep sight

Focusing Knob

1-speed

2-speed

Lense hood

 -

Retractable

Accuracy(standard deviation for 1km double   run leveling)

Without micrometer

2.0mm
  (0.08in.)

1.5mm
  (0.06in.)

0.7mm
  (0.03in.)

With micrometer



0.5mm
  (0.02in.)

Compensator

Type

pendulum compensator with magnetic damping   system

Working range

± 15′

Setting accuracy

0.5"

0.3"

Horizontal Circle

Diameter

103mm (4.1in.)

Graduation

1°/1gon

General

Sensitivity of circular level

10′/2mm

Mirror for circular level

Plane mirror

pentaprism

Horizontal motion drive

Clampless, endless, double-sided knobs

Water resistance

IPX6(IEC60529)

Operating temperature

 -20-+50°C (-4 to +122°F)

Size

122mm× 215mm× 135mm

130mm× 215mm× 140mm

Weight

1.7kg (3.7 lb.)

1.85kg (4.1 lb.)





Standard Equipment

Instrument               lens cap            plumb bob                    vinyl cover

cleaning cloth          tool kit               Operator’s manua        carrying case.



Optional accessory :



Sokkia series auto level :


Packaging & Shipping

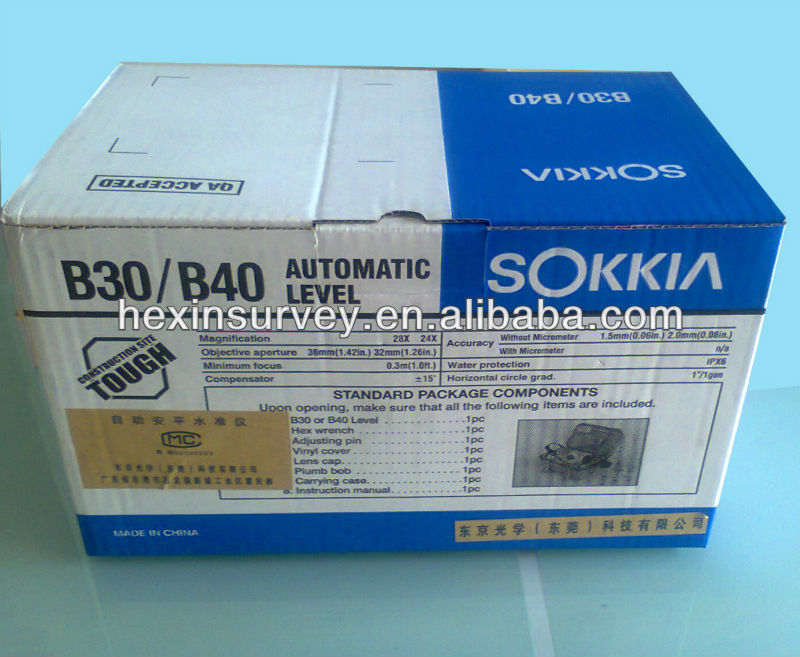

  Package:

1 piece packed in 1 inner carton (35*25*25cm;  3kg )

4 piece packed in 1 outer carton (70*45*25cm; 12kg)



 Shipment:

We can use the different international express company(DHL, TNT, FEDEX, UPS, EMS). Usually, our first choice is DHL. if you have specified requirement , pls inform us before the order.


FAQ

Payment:

We accept payment by TT,Paypal, West union,and Escrow.

If you want other payment terms, Pls let us know before the order

Delivery:

1.Usually, we will send out the products within 2-3 working days after the payment

   confirmed

2.Before shipment, pls supply the following information to us :

   Contact person or company name

   Detail address

   Telephone No

   Zip code

3.The buyer are responsible for the tax and/or duty charged by their country.

Return and warranty:

1.The products have 1 year warranty, if there is no man-made problems, we will repair

   for your freely.

2.All products are inspected before shipment, if you are not satisfactory with the

  purchase,you can exchange the items in one week,and you must contact us within

  24 hour of receipt of the products.

3.The shipping charges are not refundable and the customer should be responsible for

  all the charges of return and reshipping.
