FOIF auto level auto leveling system

FOB Reference Price:Get Latest Price
US $100-150 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
FOIF
Model Number:
DSZ3
Standard deviation of 1KM double run:
≤ ±2.0mm
Magnification:
24X
Automatic Compensaor:
with temperature offset
Clear objective aperture:
36mm
FOIF brand:
auto leveling system
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
FOIF auto level auto leveling system:
Size:30*25*25cm
Weight:3.0kg
Port
Shanghai
Lead Time :
2 working days

Specifications

1.FOIF auto leveling system
2.Standard deviation of 1KM double run:2.0mm
3.Equipped with a press button for compensator

FOIF auto level auto leveling system



     DSZ2, DSZ3 are used in 3rd and 4th order leveling and in geodetic control,construction of roads and industrial applications.

    The DSZ2 with FS1 may be used in 2nd order leveling or in monitoring structural deformation etc.

     The use of automatic compensator speeds up work and improves accuracy.

     They can be operated in the temperature from -30 °C  to +50 °C .



Features:

  • Equipped with a press button for compensator checking
  • Dismountable eyepiece,assorted accessory, such as : diagonal eyepiece.
  • Adopt crossing suspender frame and compensator of air damper

Specifications:

DSZ2

DSZ3

Standard deviation of 1KM double run

≤±1.0mm

≤±2.0mm

DSZ2+FS1 Micrometer

≤±0.5mm

/

Telescope

Erect

Erect

Clear objective aperture

45mm

36mm

Magnification

32X

24X

Field of view at 100m

2.3m

3.2m

Shortest focusing distance

1.6m

0.7m

Multiplication factor

100

100

Additive constant

0

0

Automatic Compensator

Working range

±14´

±14´

Setting accuracy

≤±0.3"

≤±0.5"

Setting time

≤2s

≤2s

Sensitivity of circular level

8´/2mm

8´/2mm

Operating temp

-30ºC+50ºC.

Weight

2.5kg

2.0kg

Parallel plate micrometer FS1(optional accessory)

Range

Interval

Estimation

Net weight

10mm

0.1mm

0.01mm

1.25kg

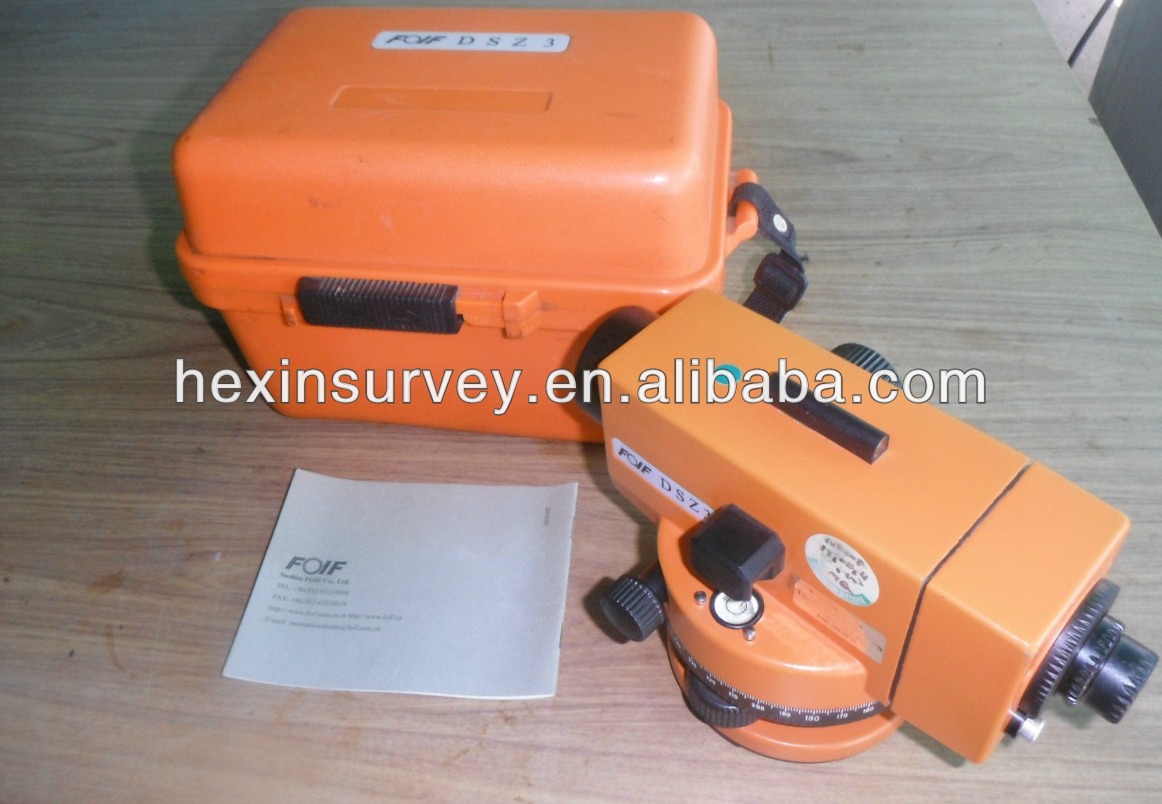

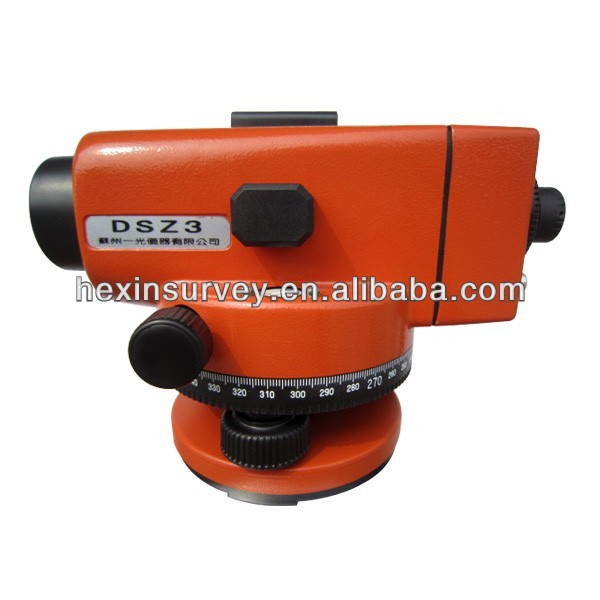

foif_dsz3_new.jpgfoif-automatic-level-dsz3.jpgdsz3[1].jpgnivel-automatico-para-mediciones-geodesicas-marca-foif-dsz3-8976-MLV20010454320_112013-F.jpg





Optional accessory :

Auto level tripod.jpg5m leveling staff.jpgA55-6.jpg
