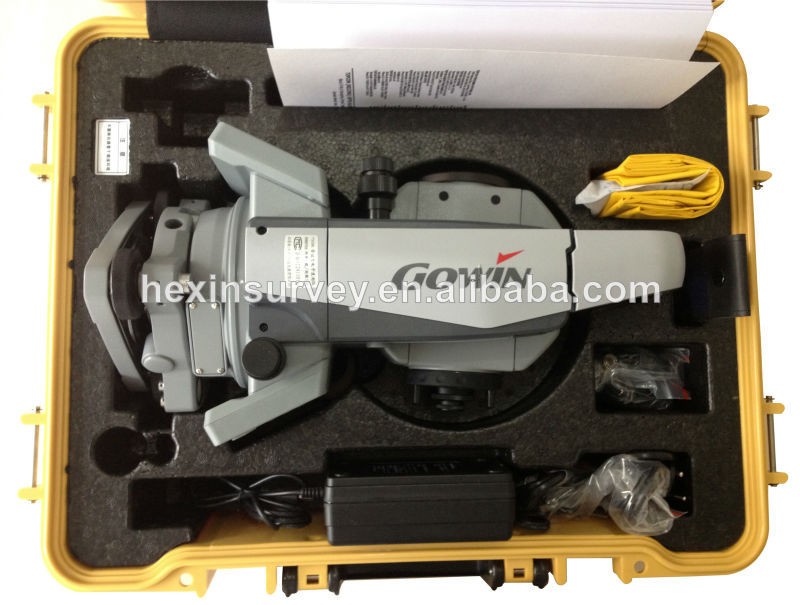

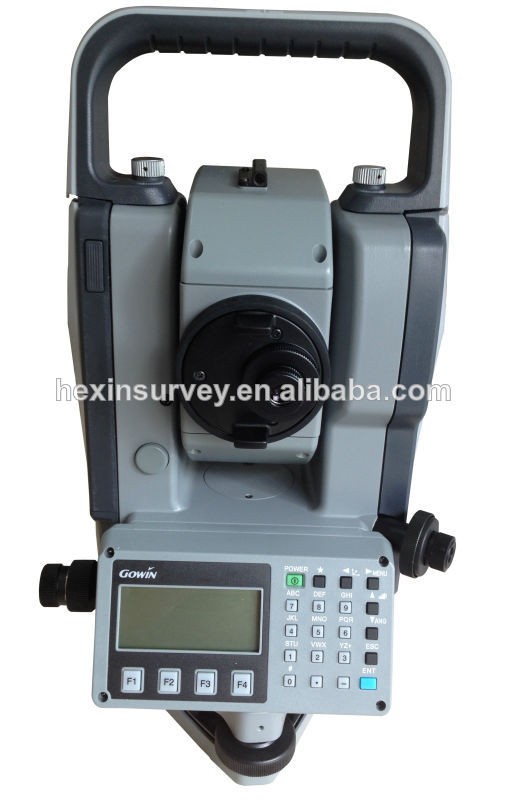

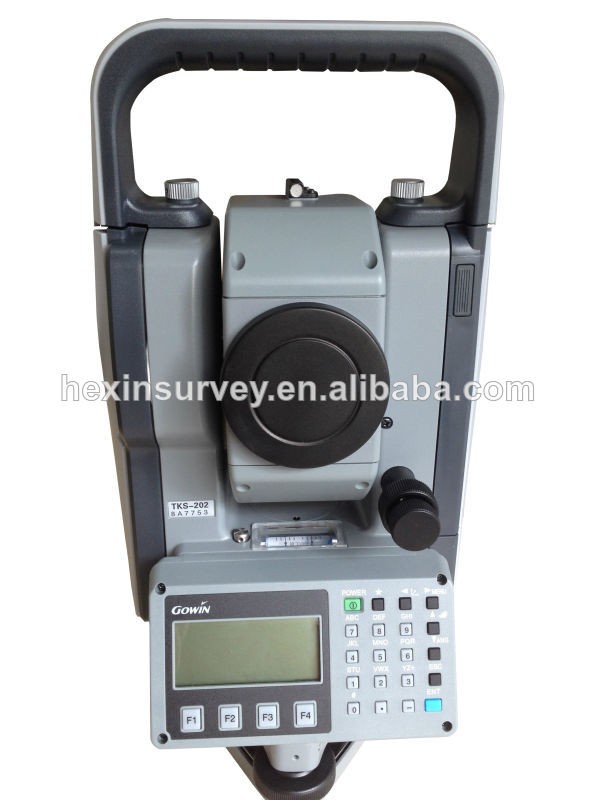

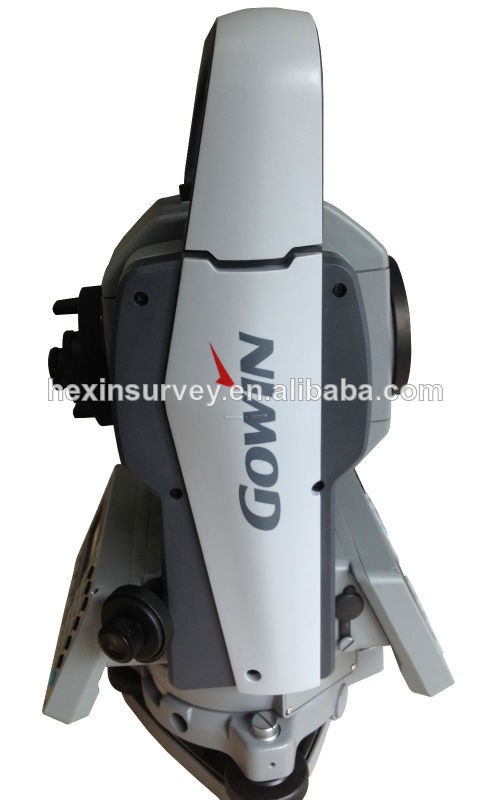

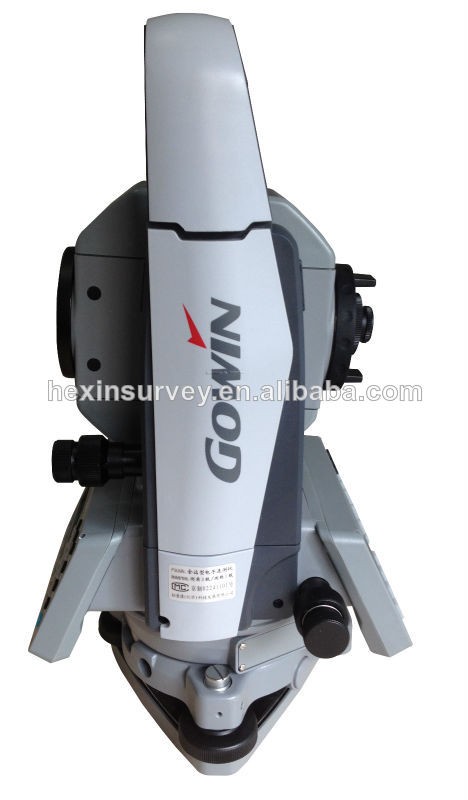

High-quality Gowin TKS202 Topcon total station
The high-value, low-cost surveying instrument designed specifically
for construction and forensics :
• Economical, value-priced measuring solution
• Rugged, durable, water resistant design
• Two accuracies to choose from: 2” & 5”
• Expanded, Full numeric keypad
• On-board programs & 24,000 point data storage
• Ideal as a construction stakeout total station
Shattering the price for High quality total station
Designed and Manufactured by Topcon,Japan , make the Gowin TKS202 a high-quality but with reasonalbe price, that every surveyor can afford
Rugged and full-featured
Onboard software compatible with many field controller, a full alpha-numeric keypad and onboard memory with an IP54 environmental rating the TKS-202 is ready for everything.
Gowin TKS202 | Specification |
Telescope | |
Length | 150mm |
Objective Lens | Dia.45mm (EDM:50mm) |
Magnification | 30x |
Image | Erect |
Field of View | 1°30' |
Resolving Power | 3.0" |
Minimum Focusing Distance | 1.3m |
Angle Measurement | |
Accuracy | 2" |
Method | Absolute |
Minimum Reading | 1"/5" |
Distance measurement | |
1 prism | 2000m |
3 prism | 2700m |
Accuracy | ±(2mm + 2ppm x D) m.s.e. |
Measurement time | |
Fine Mode | 1.2sec |
Coarse Mode | 0.7sec |
Tracking Mode | 0.4sec |
Atmospheric Correction Range | Yes |
Prism Constant Correction Range | Yes |
Software & Memory | |
On-Board Software Functions | Three-dimensional coordinate measurement |
Internal Memory | 24,000 points |
Interface | RS-232C (Standard) |
Display | |
Display Unit | Graphics LCD, 2 Sides |
Keyboard | 24 Alpha-Numeric Key |
Tilt Correction (Automatic Index) | |
Tilt Sensor | Yes |
Correction Method | Liquid Type |
Compensating Range | ±3′ |
Level Senstivity | |
Plate Level | 30"/2mm |
Circular Level | 10′/2mm |
Optical Plummet Telescope | |
Image | Erect |
Magnification | 3x |
Focusing Range | 0.5 to infinity |
Field of View | 3° |
Others | |
Protection against water and dust | IP54 (with BT-L1 Battery) |
Operating Temperature | -20°C~+50°C B47 |
Dimension | 336(H) x 184(W) x 172(L)mm |
Weight (with Battery) | 4.8Kg |
On Board Battery | BT-L1 (Lithium-ion) |
Battery Charger | BC-L1 |
Maximum Operating Time | |
Including Distance Measurement | 14 Hours |
Angle Measurement Only | 60 Hours |
Output Voltage | DC 10V |
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.

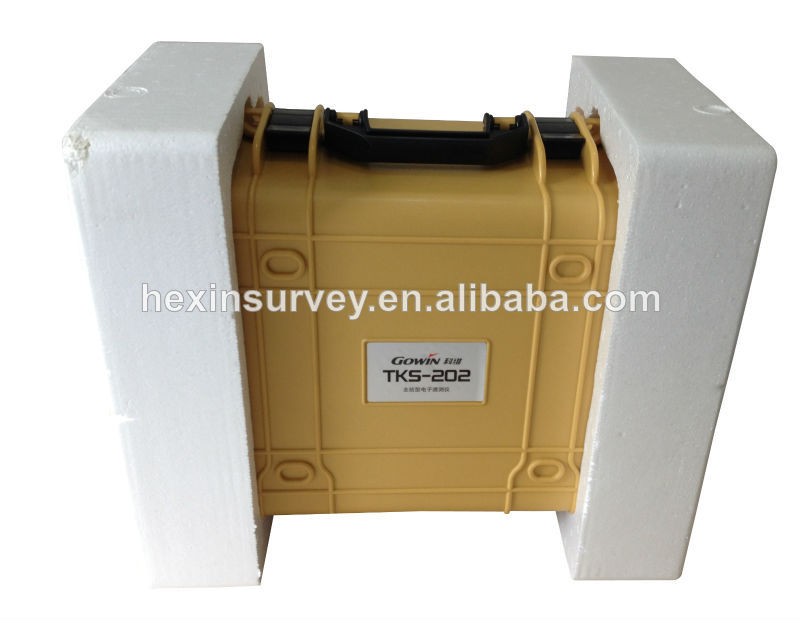

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS,China Air Post.
