Laisai brand LS402 theodolite

FOB Reference Price:Get Latest Price
US $420-450 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Laisai
Model Number:
LS402
Minimum reading:
1"/2"/5" optional
Compensator:
Auto vertical compensator
Display:
2 sides, large LCD
Angle unit:
3 optional (Degree, Gon,Mil)
Plummet:
optical plummet/Laser plummet optional
Data port:
RS232
Laisai:
theodolite
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Laisai brand theodolite:
1 piece packed in 1 carton.
Size(L*W*H):50*26*40cm
Weight: 6KG
Port
Shanghai
Lead Time :
3 working days

Specifications

1.Best sell china brand theodolite
2.Angle unit 3 optional: degree, gon, mil
3.Display and sighting illuminication.

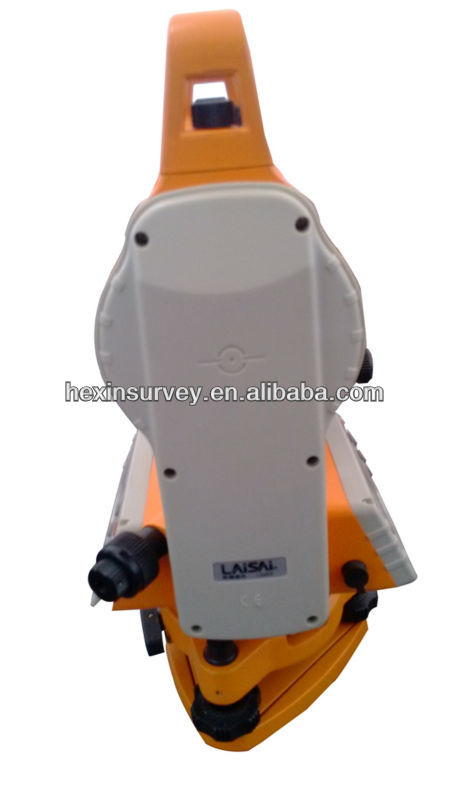

Laisai LS402 Digital theodolite



       It uses the latest electronic technology and SCM technology, which makes the digital electronic theodolite have strong function. It becomes very simple and convenient for measuring the horizontal and vertical angle. Two large LCD and high magnification telescope makes observing and reading more clearly, and it is an ideal high accuracy orientation instrument for construction field.



Features:

  •   Optional Chinese or English operation pad
  •   Two large LCD panels showing horizontal and vertical reading simultaneously
  •   Built-in display and sighting illumination for weak light conditions
  •   Angle unit in three kinds: degree, gon, mil
  •   Audible warning when horizontal angle reading reaches such  unique angle  settings, like 0°, 90°, 180°, 270 °
  •   Optional vertical-angle measuring modes in four kinds
  •   Automatic compensation / non-compensation options for vertical zero setting
  •   Built-in optical plummet
  •   Compatible for both rechargeable batteries and un-rechargeable batteries
  •   Four options of automatic power-off: No, 10minutes, 20 minutes, 30 minutes



Specification:





ModelLS402
TelescopeImagingErect image
Magnification30x
Effective aperture(43mm)
Field of view1°20
Minimum focus1.4m
Stadia ratio100
Stadia add0
Tube length157mm
Angular measurement Measurement methodIncremental Photoelectronic Encoding
Raster Disk Diameter71mm
Minimum Reading1"/2"/5" optional
Accuracy2"/5"/10" optional
Angle unit360°/ 400gon / 6400mil (At your option)
Sensitivity of vialPlate Vial30"/2mm
Circual Vial8/2mm
Auto vertical compensatorSystemElectronic Detection
Working range±3'
Accuracy1"
Optical plummetImageErect
Magnification3X
Focus range0.5-
Field of view
DisplayDisplay type2 sides, Large LCD
Data portData portRS232
Physical CharacteristicOperation temperature-20°C~+45°C
BatteryNi-MH rechargeable batter pack or 4 x AA alkaline batteries
Voltage6V
Operation time16h
Dimension(160 x 150 x 330 mm)
Weight4.6kg
